SKU: NJ2207-CDX

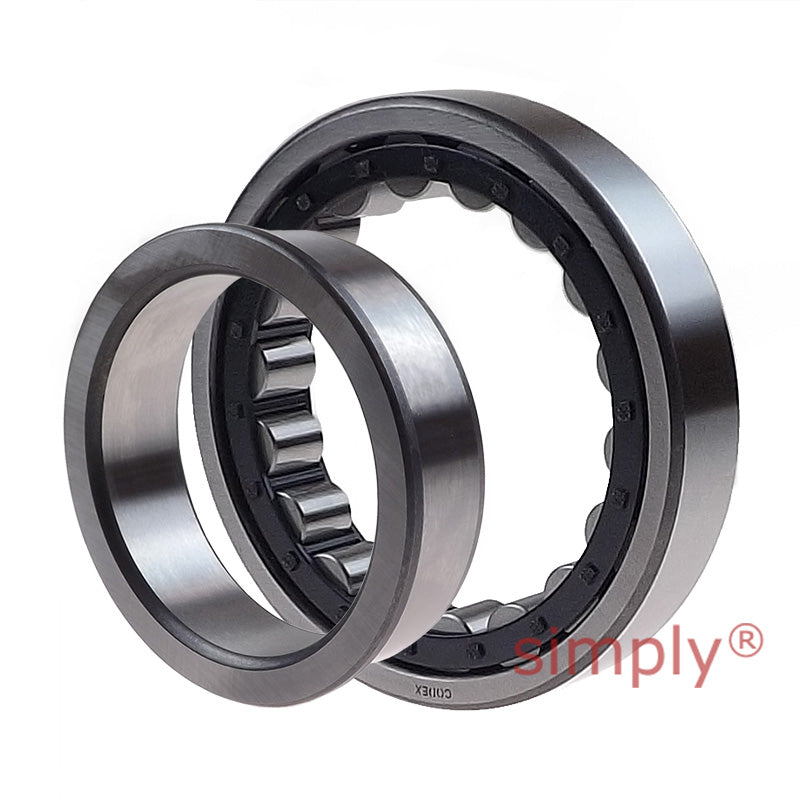

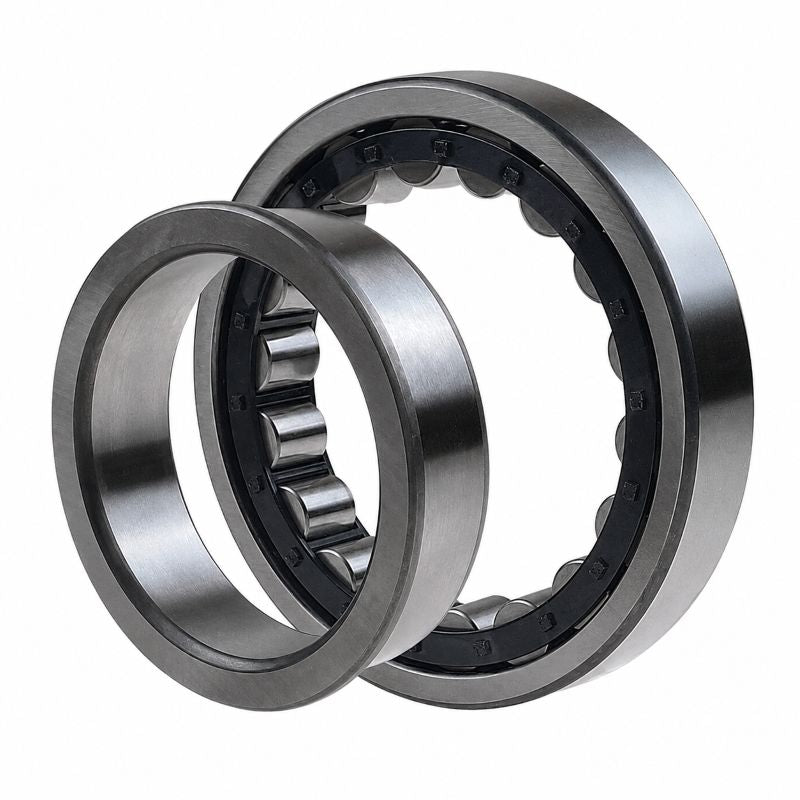

Codex NJ2207 Single Row Cylindrical Roller Bearing 35x72x23mm

Name: Codex NJ2207 Single Row Cylindrical Roller Bearing 35x72x23mm
Brand: Codex
SKU: NJ2207-CDX
Price: 36.47 USD
Availability: InStock

$36.47 ex VAT

Sale Sold out

In stock

Price Break

10+ $24.43

19+ $23.06

29+ $22.78

39+ $22.51

49+ $22.23

74+ $21.96

99+ $20.59

199+ $20.31

249+ $20.04

499+ $19.76

999+ $19.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 35mm
Outside Diameter:: 72mm
Width:: 23mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	35mm
D	72mm
B	23mm
Dynamic load C	69.5 kN
Static load Co	63 kN
Fatigue load limit Pu	8.15 kN
Reference speed	11000 rpm
Limiting speed	12000 rpm
Weight	0.41 kg
Cage options	J.ML
d1	48.1mm
D1	60.7mm
F, E	44mm
r1r2 min	1.1mm
r3r4 min	0.6mm
s	2.8mm
da min	42mm
da max	42mm
db min	50mm
Da max	65mm
ra max	1mm
rb max	0.6mm
kr	0.2
