SKU: NJ2209-CDX

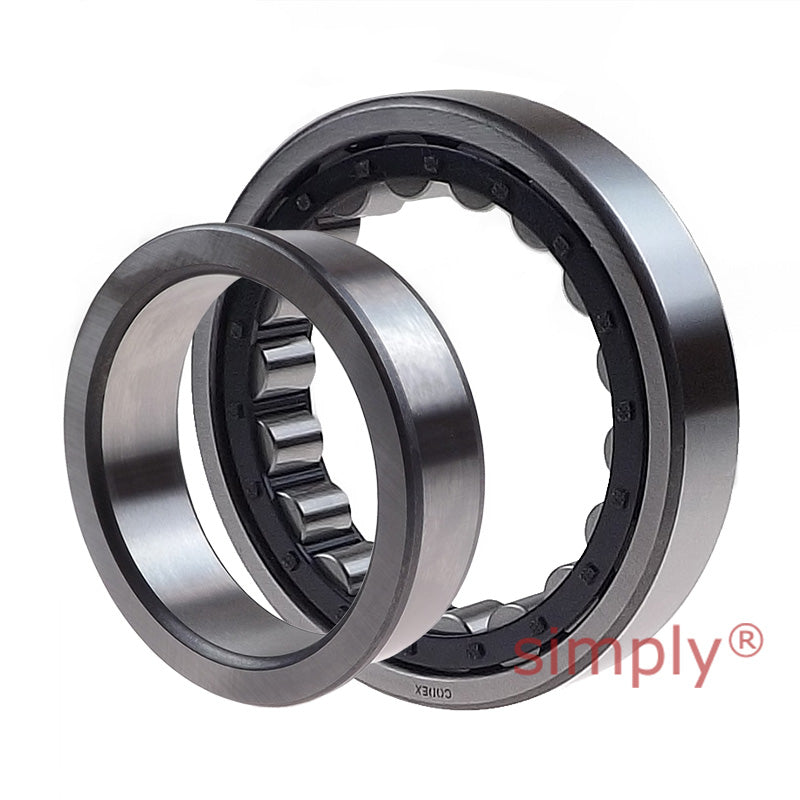

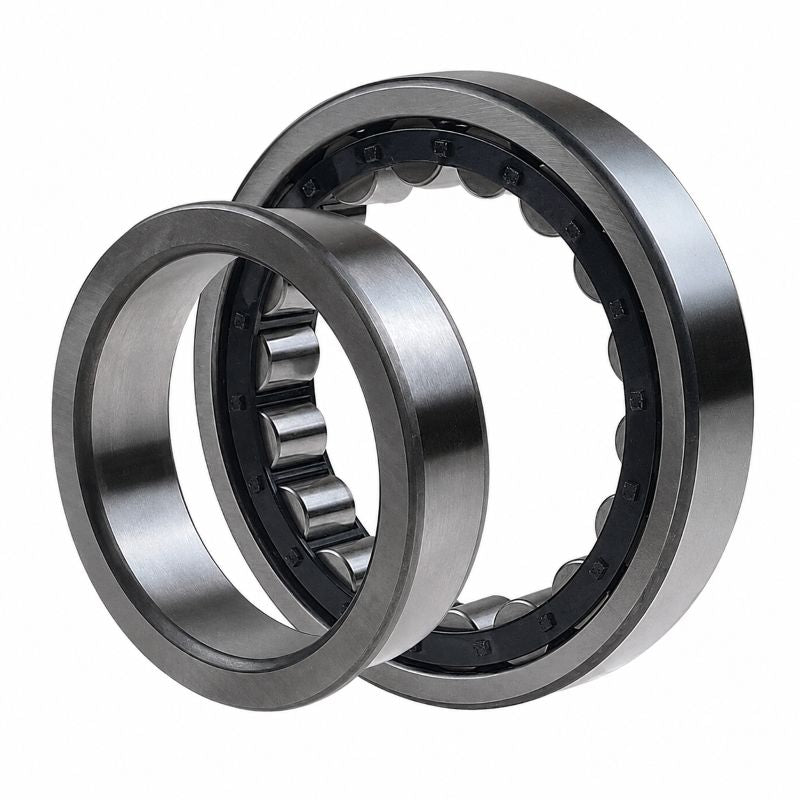

Codex NJ2209 Single Row Cylindrical Roller Bearing 45x85x23mm

Name: Codex NJ2209 Single Row Cylindrical Roller Bearing 45x85x23mm
Brand: Codex
SKU: NJ2209-CDX
Price: 61.52 USD
Availability: InStock

$61.52 ex VAT

Sale Sold out

In stock

Price Break

10+ $41.20

19+ $38.89

29+ $38.43

39+ $37.96

49+ $37.50

74+ $37.04

99+ $34.72

199+ $34.26

249+ $33.80

499+ $33.33

999+ $32.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 45mm
Outside Diameter:: 85mm
Width:: 23mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	45mm
D	85mm
B	23mm
Dynamic load C	85 kN
Static load Co	81.5 kN
Fatigue load limit Pu	10.6 kN
Reference speed	9000 rpm
Limiting speed	9500 rpm
Weight	0.54 kg
Cage options	J
d1	59mm
D1	73mm
F, E	54.5mm
r1r2 min	1.1mm
r3r4 min	1.1mm
s	1.7mm
da min	52mm
da max	53mm
db min	56mm
Da max	78mm
ra max	1mm
rb max	1mm
kr	0.2
