SKU: NJ2209ECP/C3-SKF

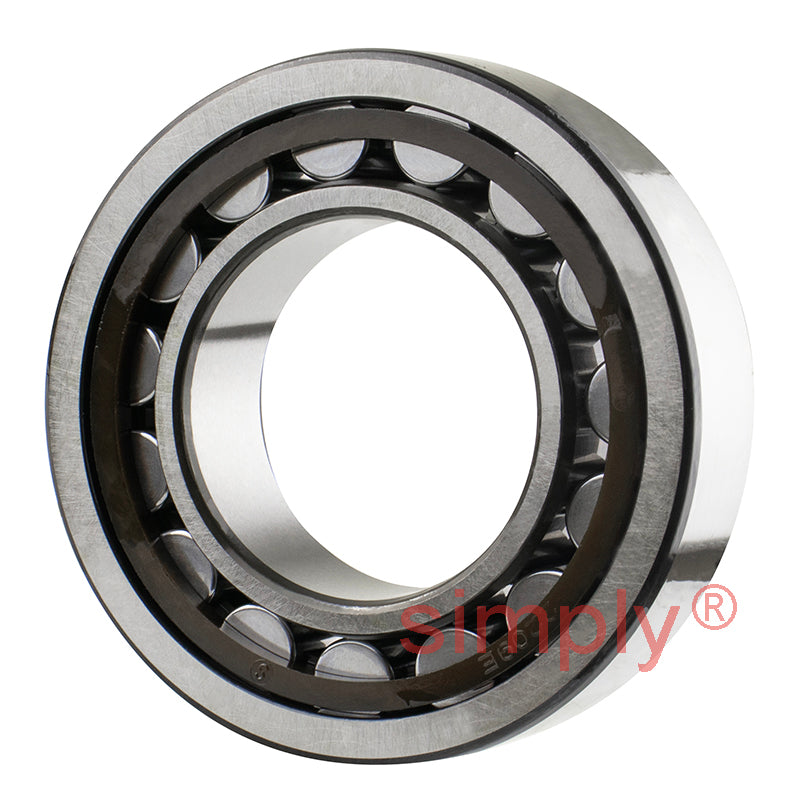

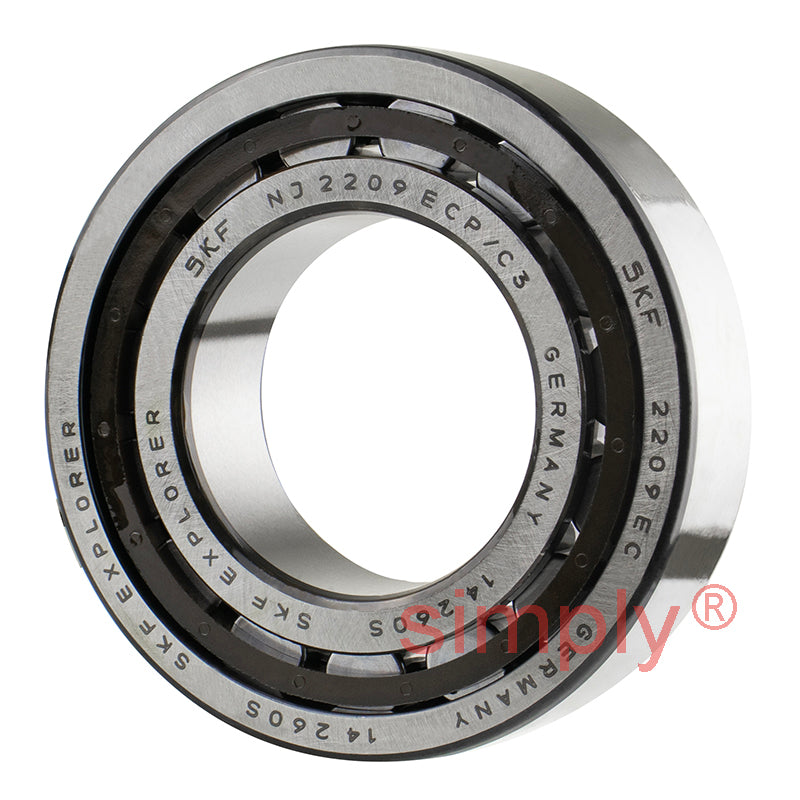

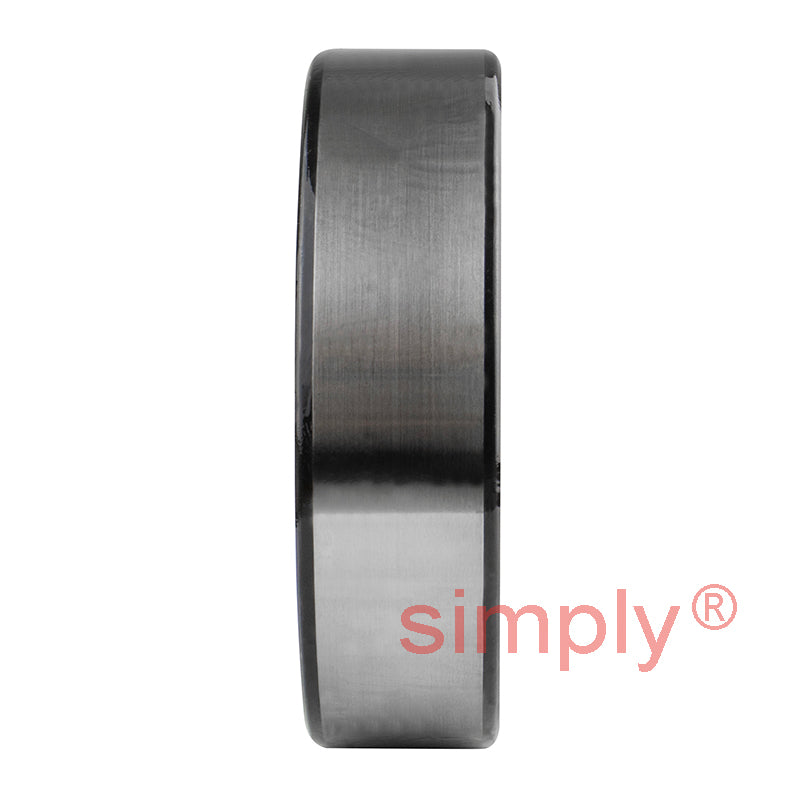

SKF NJ2209ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 45x85x23mm
SKF NJ2209ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 45x85x23mm
Regular price
$91.06
ex VAT
Regular price
Sale price
$91.06
ex VAT
In stock
Price Break
10+
$60.99
19+
$57.56
29+
$56.88
39+
$56.19
49+
$55.51
74+
$54.82
99+
$51.40
199+
$50.71
249+
$50.03
499+
$49.34
999+
$47.97
Quantity
Couldn't load pickup availability
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 23mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 45mm |
|---|---|
| D | 85mm |
| B | 23mm |
| Dynamic load C | 85 kN |
| Static load Co | 81.5 kN |
| Fatigue load limit Pu | 10.6 kN |
| Reference speed | 9000 rpm |
| Limiting speed | 9500 rpm |
| Weight | 0.54 kg |
| Alt cage | J |
| d1 | 59mm |
| D1 | 73mm |
| F,E | 54.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| S | 1.7mm |
| da min | 52mm |
| da max | 53mm |
| db | 56mm |
| Da max | 78mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.2 |
