SKU: NJ2210-CDX

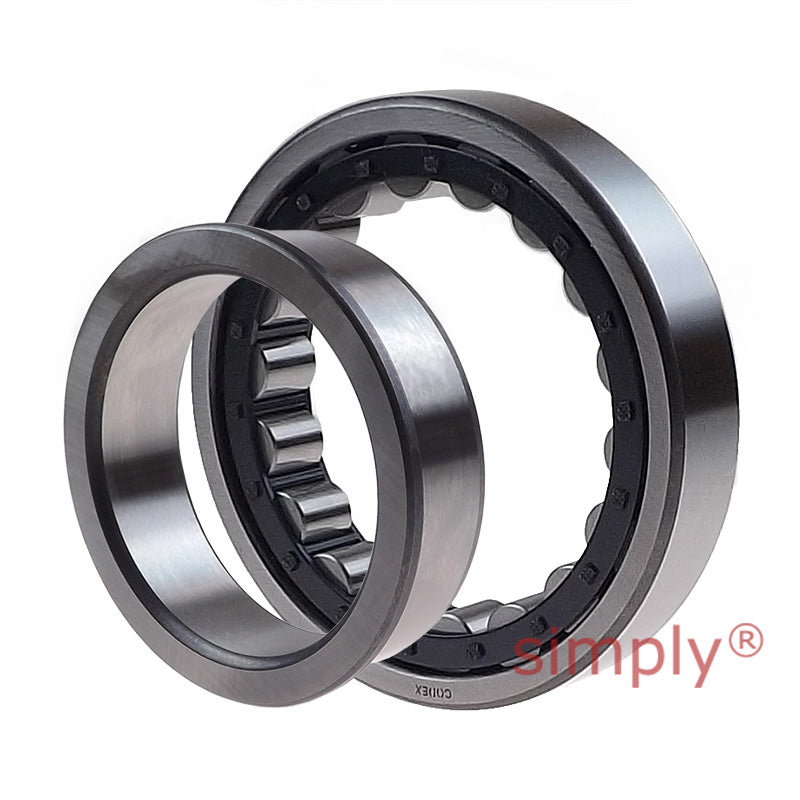

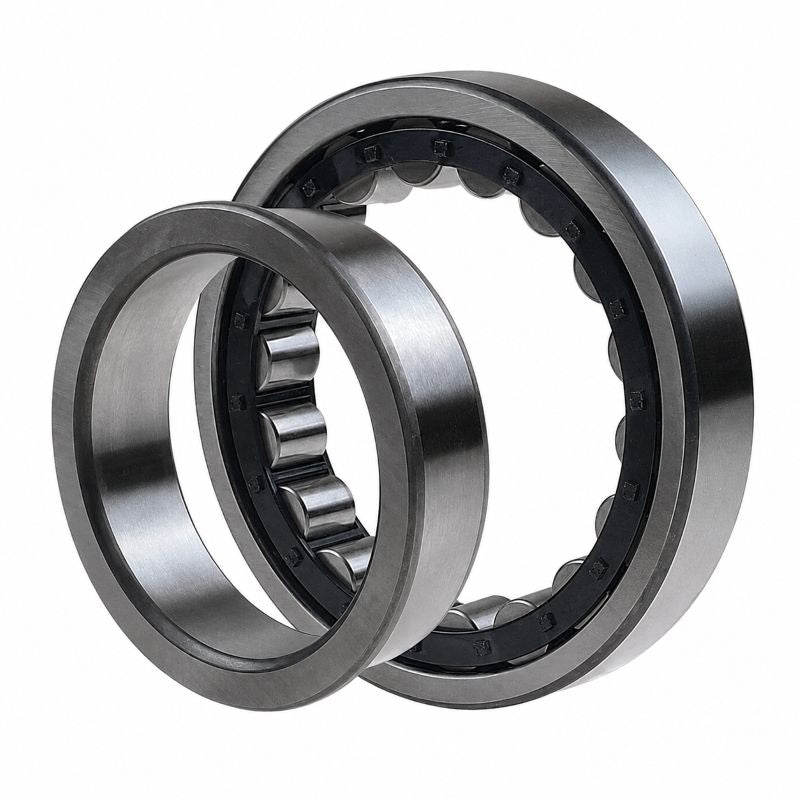

Codex NJ2210 Single Row Cylindrical Roller Bearing 50x90x23mm
- Regular price
- $74.06 ex VAT
- Sale price
- $74.06
- Regular price
-
In stock
Quantity Price Breaks
10
$65.91
19
$62.21
29
$61.47
39
$60.73
49
$59.99
74
$59.25
99
$55.55
199
$54.80
249
$54.06
499
$53.32
999
$51.84
SKU:
NJ2210-CDX
Codex NJ2210 Single Row Cylindrical Roller Bearing 50x90x23mm
- Regular price
- $74.06 ex VAT
- Sale price
- $74.06
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 50mm |
| D | = | 90mm |
| B | = | 23mm |
| Dynamic load C | = | 90 kN |
| Static load Co | = | 88 kN |
| Fatigue load limit Pu | = | 11.4 kN |
| Reference speed | = | 8500 rpm |
| Limiting speed | = | 9000 rpm |
| Weight | = | 0.57 kg |
| Cage options | = | J.M.ML |
| d1 | = | 64mm |
| D1 | = | 78mm |
| F, E | = | 59.5mm |
| r1r2 min | = | 1.1mm |
| r3r4 min | = | 1.1mm |
| s | = | 1.5mm |
| da min | = | 57mm |
| da max | = | 57mm |
| db min | = | 66mm |
| Da max | = | 83mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
| kr | = | 0.2 |
