SKU: NJ2211-CDX

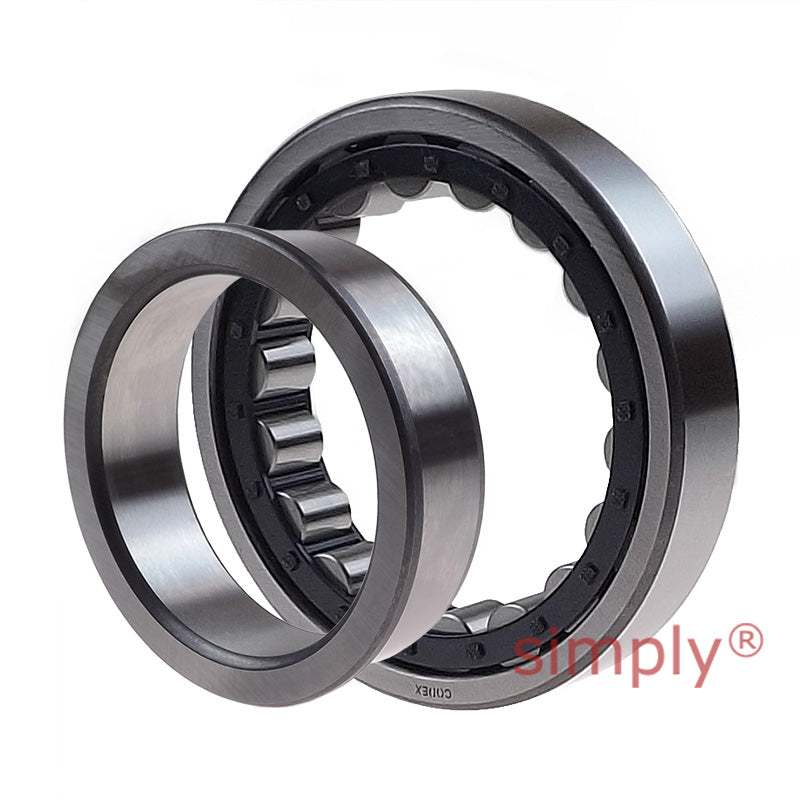

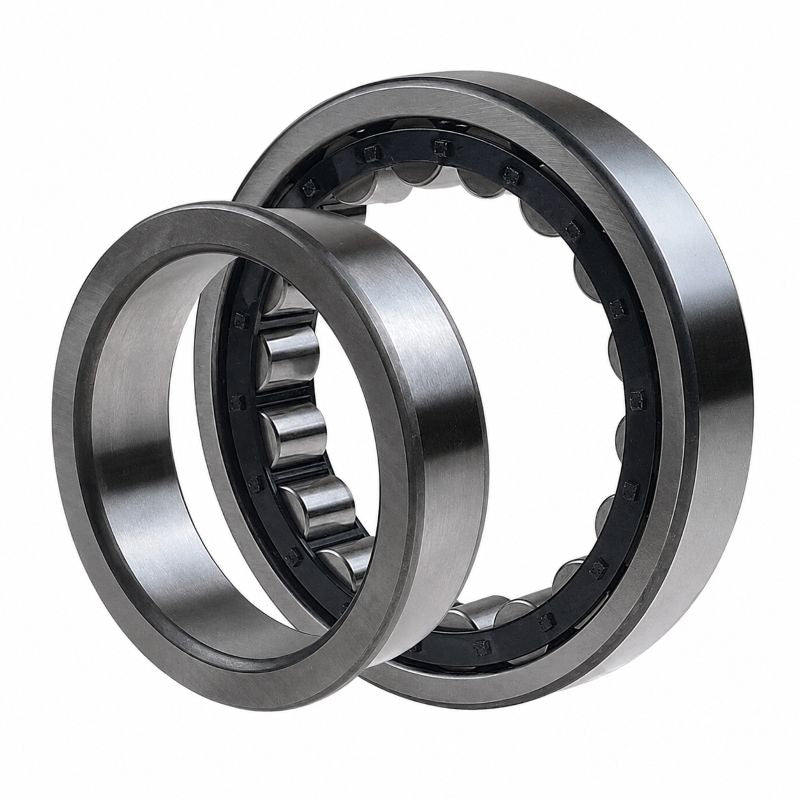

Codex NJ2211 Single Row Cylindrical Roller Bearing 55x100x25mm

Name: Codex NJ2211 Single Row Cylindrical Roller Bearing 55x100x25mm
Brand: Codex
SKU: NJ2211-CDX
Price: 78.75 USD
Availability: InStock

$78.75 ex VAT

Sale Sold out

In stock

Price Break

10+ $52.75

19+ $49.79

29+ $49.20

39+ $48.60

49+ $48.01

74+ $47.42

99+ $44.45

199+ $43.86

249+ $43.27

499+ $42.68

999+ $41.49

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 55mm
Outside Diameter:: 100mm
Width:: 25mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	55mm
D	100mm
B	25mm
Dynamic load C	114 kN
Static load Co	118 kN
Fatigue load limit Pu	15.3 kN
Reference speed	7500 rpm
Limiting speed	8000 rpm
Weight	0.81 kg
Cage options	J.M.ML
d1	70.8mm
D1	86.3mm
F, E	66mm
r1r2 min	1.5mm
r3r4 min	1.1mm
s	1.5mm
da min	64mm
da max	64mm
db min	73mm
Da max	91mm
ra max	1.5mm
rb max	1mm
kr	0.2
Angle ring	HJ2211EC
Angle ring weight	0.085kg
B1	6mm
B2	10mm
