SKU: NJ2213-CDX

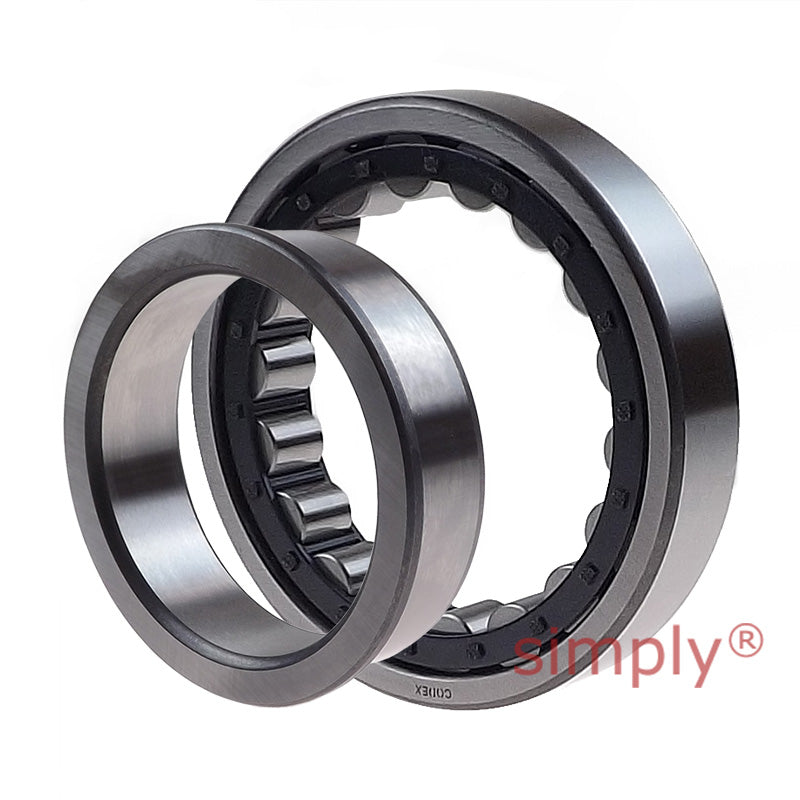

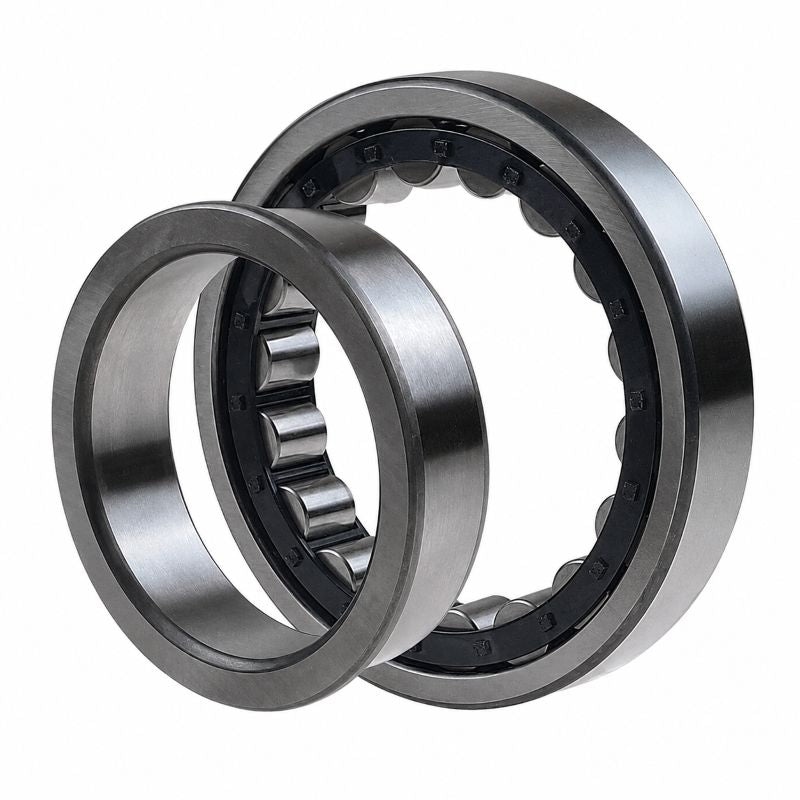

Codex NJ2213 Single Row Cylindrical Roller Bearing 65x120x31mm

Name: Codex NJ2213 Single Row Cylindrical Roller Bearing 65x120x31mm
Brand: Codex
SKU: NJ2213-CDX
Price: 116.47 USD
Availability: InStock

$116.47 ex VAT

Sale Sold out

In stock

Price Break

10+ $78.01

19+ $73.63

29+ $72.75

39+ $71.88

49+ $71.00

74+ $70.12

99+ $65.74

199+ $64.87

249+ $63.99

499+ $63.11

999+ $61.36

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 65mm
Outside Diameter:: 120mm
Width:: 31mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	65mm
D	120mm
B	31mm
Dynamic load C	170 kN
Static load Co	180 kN
Fatigue load limit Pu	24 kN
Reference speed	6300 rpm
Limiting speed	6700 rpm
Weight	1.45 kg
Cage options	J
d1	84.4mm
D1	104mm
F, E	78.5mm
r1r2 min	1.5mm
r3r4 min	1.5mm
s	1.9mm
da min	74mm
da max	76mm
db min	87mm
Da max	111mm
ra max	1.5mm
rb max	1.5mm
kr	0.2
Angle ring	HJ2213EC
Angle ring weight	0.13kg
B1	6mm
B2	10.5mm
