SKU: NJ2214-CDX

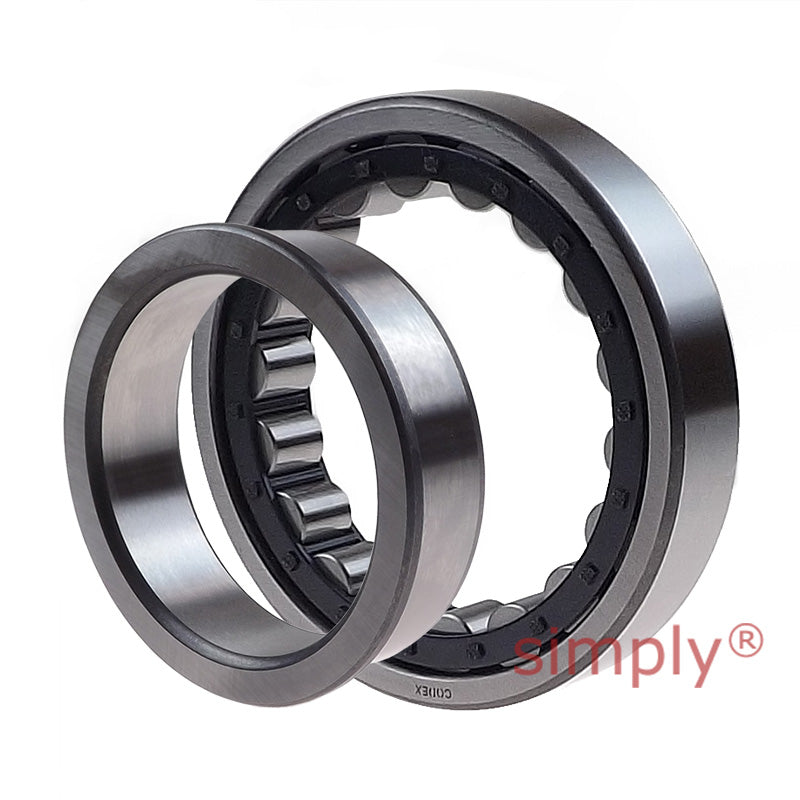

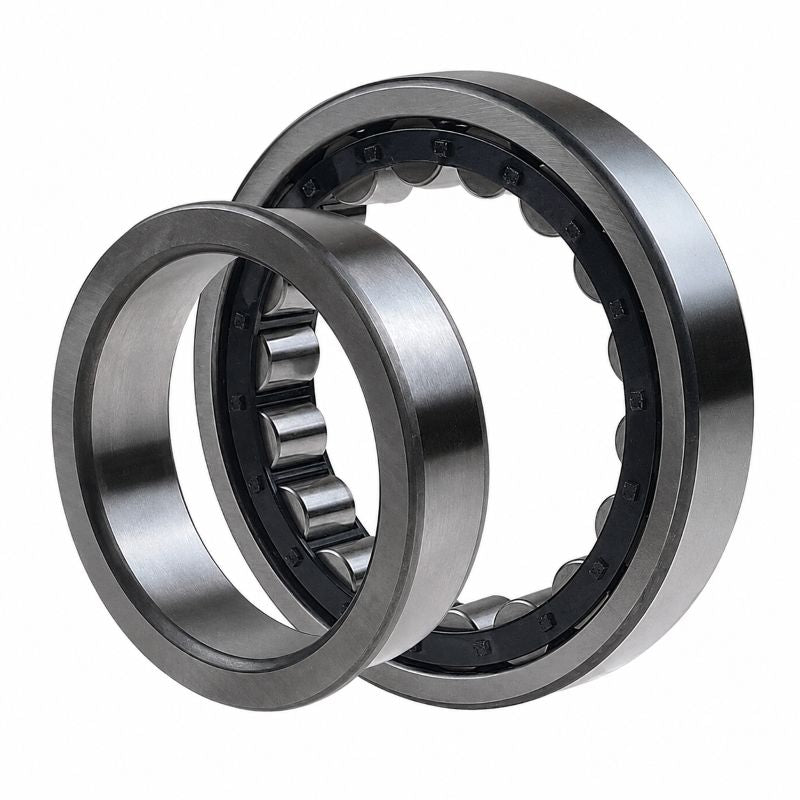

Codex NJ2214 Single Row Cylindrical Roller Bearing 70x125x31mm

Name: Codex NJ2214 Single Row Cylindrical Roller Bearing 70x125x31mm
Brand: Codex
SKU: NJ2214-CDX
Price: 115.48 USD
Availability: InStock

$115.48 ex VAT

Sale Sold out

In stock

Price Break

10+ $77.35

19+ $73.01

29+ $72.14

39+ $71.27

49+ $70.40

74+ $69.53

99+ $65.18

199+ $64.31

249+ $63.45

499+ $62.58

999+ $60.84

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 70mm
Outside Diameter:: 125mm
Width:: 31mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	70mm
D	125mm
B	31mm
Dynamic load C	180 kN
Static load Co	193 kN
Fatigue load limit Pu	25.5 kN
Reference speed	6000 rpm
Limiting speed	6300 rpm
Weight	1.55 kg
Cage options	M.ML
d1	89.4mm
D1	109mm
F, E	83.5mm
r1r2 min	1.5mm
r3r4 min	1.5mm
s	1.7mm
da min	79mm
da max	81mm
db min	92mm
Da max	116mm
ra max	1.5mm
rb max	1.5mm
kr	0.2
Angle ring	HJ2214EC
Angle ring weight	0.16kg
B1	7mm
B2	11.5mm
