SKU: NJ2215-CDX

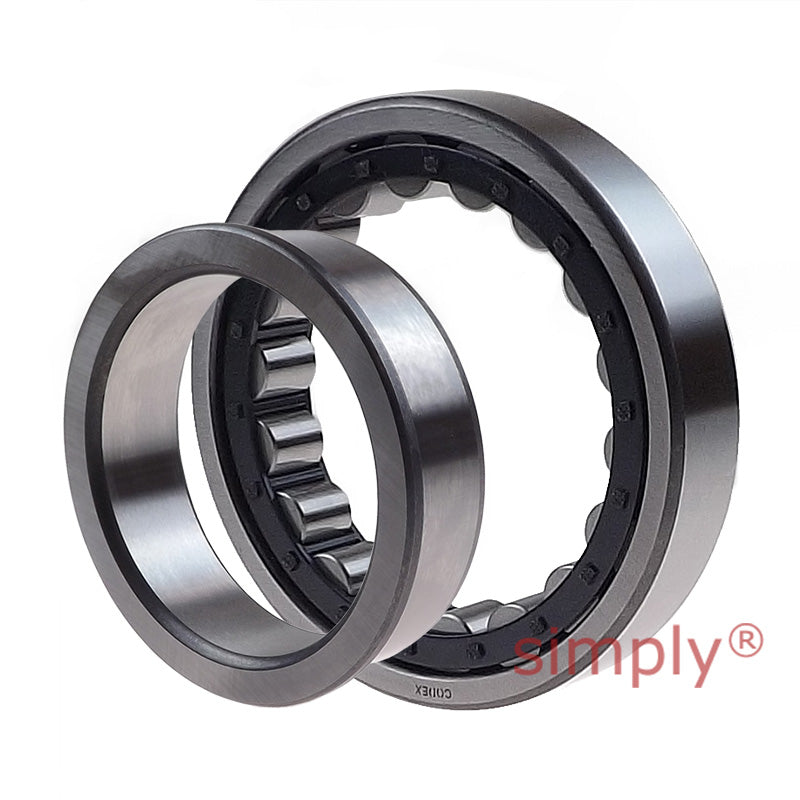

Codex NJ2215 Single Row Cylindrical Roller Bearing 75x130x31mm
- Regular price
- $154.71 ex VAT
- Sale price
- $154.71
- Regular price
-
In stock
Quantity Price Breaks
10
$137.69
19
$129.96
29
$128.41
39
$126.86
49
$125.32
74
$123.77
99
$116.03
199
$114.49
249
$112.94
499
$111.39
999
$108.30
SKU:
NJ2215-CDX
Codex NJ2215 Single Row Cylindrical Roller Bearing 75x130x31mm
- Regular price
- $154.71 ex VAT
- Sale price
- $154.71
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 75mm |
| D | = | 130mm |
| B | = | 31mm |
| Dynamic load C | = | 186 kN |
| Static load Co | = | 208 kN |
| Fatigue load limit Pu | = | 27 kN |
| Reference speed | = | 5600 rpm |
| Limiting speed | = | 6000 rpm |
| Weight | = | 1.6 kg |
| Cage options | = | J.ML |
| d1 | = | 94.3mm |
| D1 | = | 114mm |
| F, E | = | 88.5mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1.5mm |
| s | = | 1.7mm |
| da min | = | 84mm |
| da max | = | 86mm |
| db min | = | 97mm |
| Da max | = | 121mm |
| ra max | = | 1.5mm |
| rb max | = | 1.5mm |
| kr | = | 0.2 |
