SKU: NJ2216-CDX

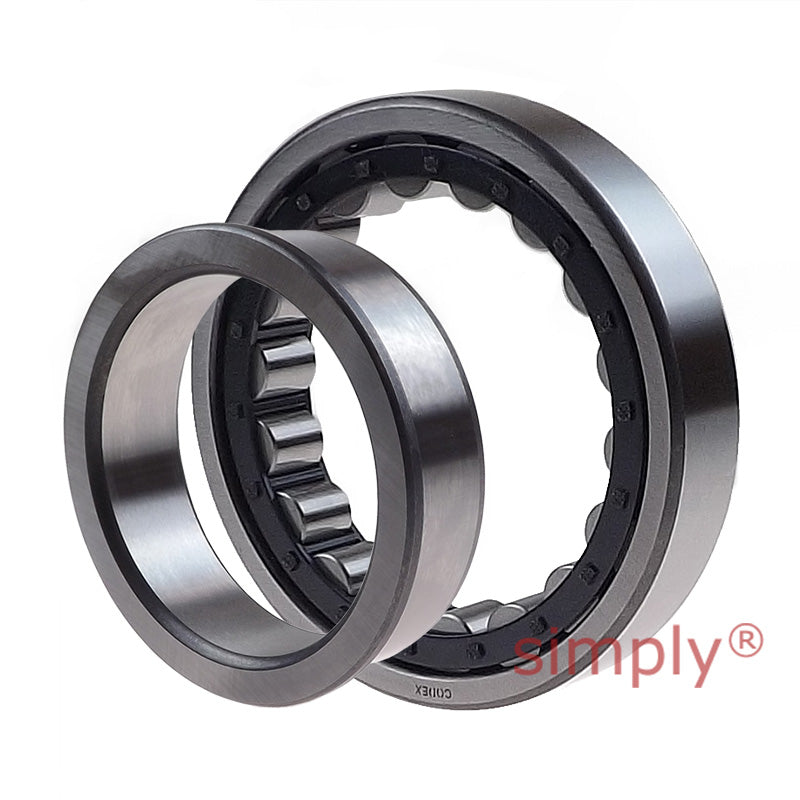

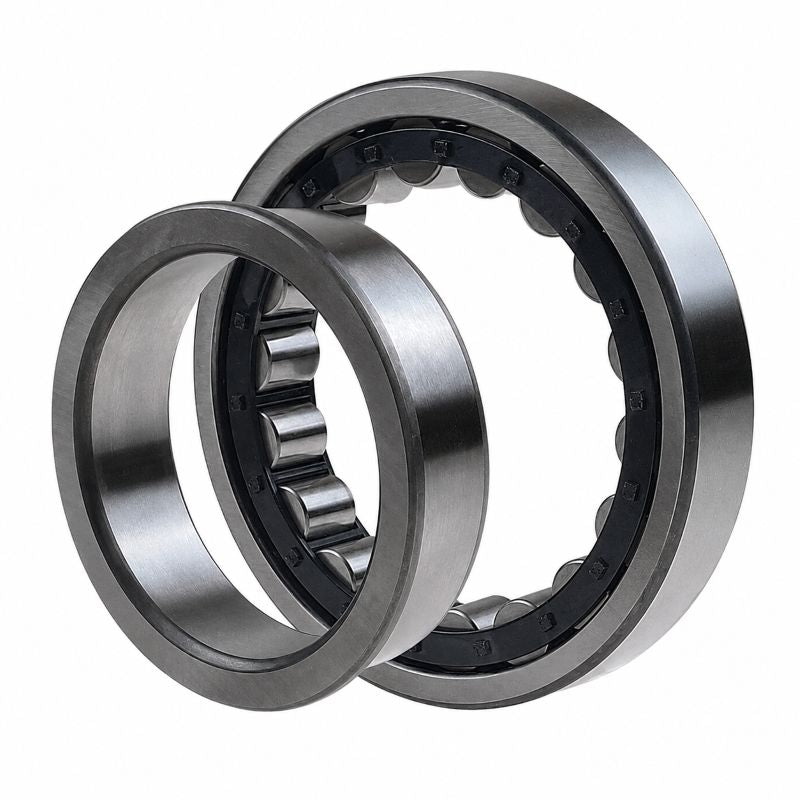

Codex NJ2216 Single Row Cylindrical Roller Bearing 80x140x33mm

Name: Codex NJ2216 Single Row Cylindrical Roller Bearing 80x140x33mm
Brand: Codex
SKU: NJ2216-CDX
Price: 165.73 USD
Availability: InStock

$165.73 ex VAT

Sale Sold out

In stock

Price Break

10+ $111.01

19+ $104.77

29+ $103.53

39+ $102.28

49+ $101.03

74+ $99.79

99+ $93.55

199+ $92.30

249+ $91.05

499+ $89.81

999+ $87.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction.
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 80mm
Outside Diameter:: 140mm
Width:: 33mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	80mm
D	140mm
B	33mm
Dynamic load C	212 kN
Static load Co	245 kN
Fatigue load limit Pu	31 kN
Reference speed	5300 rpm
Limiting speed	5600 rpm
Weight	2.05 kg
Cage options	J.M.ML
d1	101mm
D1	123mm
F, E	95.3mm
r1r2 min	2mm
r3r4 min	2mm
s	1.4mm
da min	91mm
da max	93mm
db min	104mm
Da max	129mm
ra max	2mm
rb max	2mm
kr	0.2
Angle ring	HJ216EC
Angle ring weight	0.21kg
B1	8mm
B2	12.5mm
