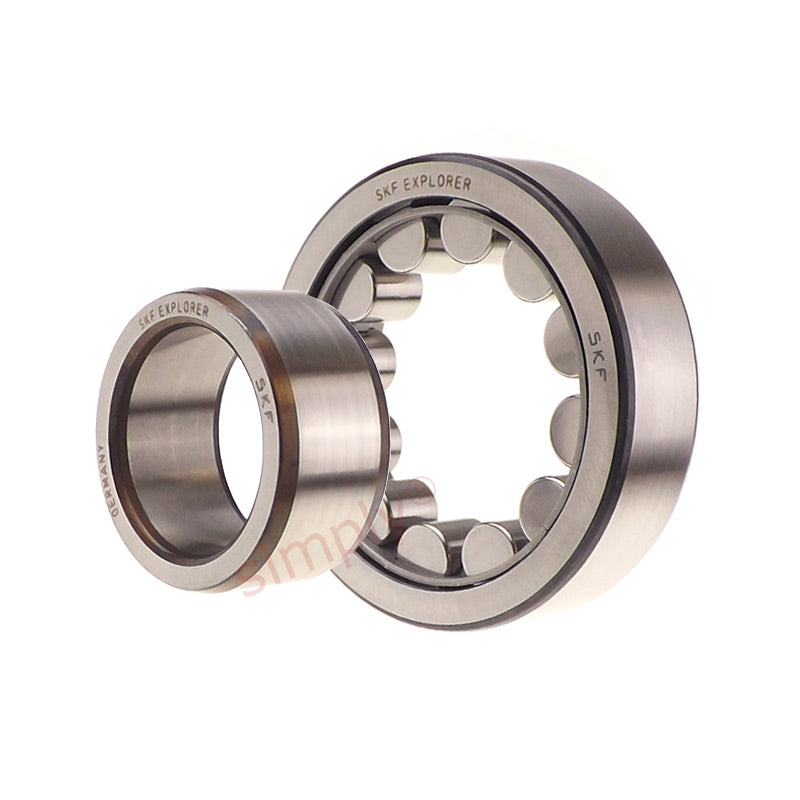

SKF NJ2224ECJ Single Row Cylindrical Roller Bearing with Pressed Steel Cage 120x215x58mm
SKF NJ2224ECJ Single Row Cylindrical Roller Bearing with Pressed Steel Cage 120x215x58mm
Regular price
$939.15
ex VAT
Regular price
Sale price
$939.15
ex VAT
In stock
Price Break
10+
$629.07
19+
$593.73
29+
$586.66
39+
$579.59
49+
$572.52
74+
$565.46
99+
$530.11
199+
$523.05
249+
$515.98
499+
$508.91
999+
$494.77
Quantity
Couldn't load pickup availability
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 58mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 120mm |
|---|---|
| D | 215mm |
| B | 58mm |
| Dynamic load C | 520 kN |
| Static load Co | 630 kN |
| Fatigue load limit Pu | 72 kN |
| Reference speed | 3400 rpm |
| Limiting speed | 3600 rpm |
| Weight | 8.5 kg |
| Alt cage | J.M.ML |
| d1 | 153mm |
| D1 | 188mm |
| F,E | 143.5mm |
| r1r2 min | 2.1mm |
| r3r4 min | 2.1mm |
| S | 3.8mm |
| da min | 132mm |
| da max | 140mm |
| db | 156mm |
| Da max | 203mm |
| ra max | 2mm |
| rb max | 2mm |
| kr | 0.2 |
| Angle ring | HJ2224EC |
| Angle Ring Weight | 0.74 kg |
| B1 | 11mm |
| B2 | 20mm |
