SKU: NJ2305-CDX

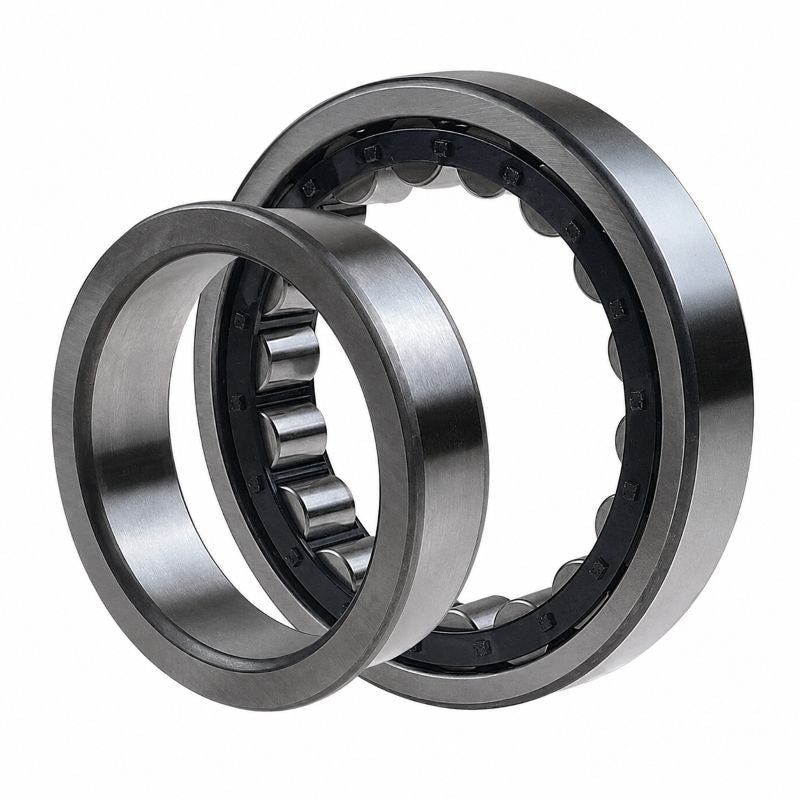

Codex NJ2305 Single Row Cylindrical Roller Bearing 25x62x24mm
- Regular price
- $45.92 ex VAT
- Sale price
- $45.92
- Regular price
-
In stock
Quantity Price Breaks
10
$40.87
19
$38.57
29
$38.11
39
$37.65
49
$37.20
74
$36.74
99
$34.44
199
$33.98
249
$33.52
499
$33.06
999
$32.14
SKU:
NJ2305-CDX
Codex NJ2305 Single Row Cylindrical Roller Bearing 25x62x24mm
- Regular price
- $45.92 ex VAT
- Sale price
- $45.92
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 25mm |
| D | = | 62mm |
| B | = | 24mm |
| Dynamic load C | = | 64 kN |
| Static load Co | = | 55 kN |
| Fatigue load limit Pu | = | 6.95 kN |
| Reference speed | = | 12000 rpm |
| Limiting speed | = | 15000 rpm |
| Weight | = | 0.35 kg |
| Cage options | = | ML |
| d1 | = | 38.1mm |
| D1 | = | 50.7mm |
| F, E | = | 34mm |
| r1r2 min | = | 1.1mm |
| r3r4 min | = | 1.1mm |
| s | = | 2.3mm |
| da min | = | 32mm |
| da max | = | 32mm |
| db min | = | 40mm |
| Da max | = | 55mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
| kr | = | 0.25 |
| Angle ring | = | HJ2305EC |
| Angle ring weight | = | 0.025kg |
| B1 | = | 4mm |
| B2 | = | 8mm |
