SKU: NJ2306-CDX

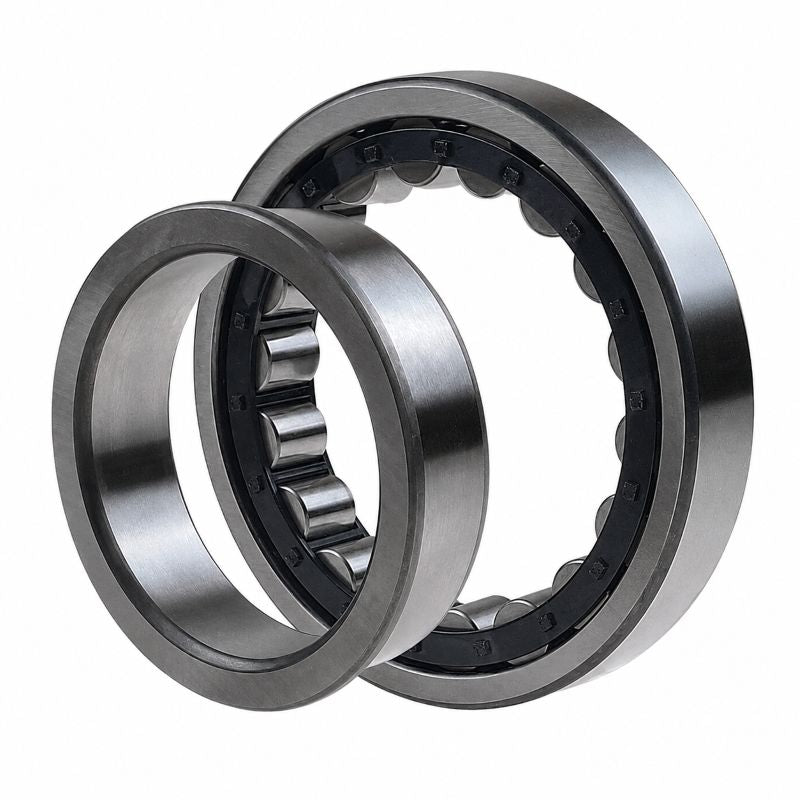

Codex NJ2306 Single Row Cylindrical Roller Bearing 30x72x27mm
- Regular price
- $56.05 ex VAT
- Sale price
- $56.05
- Regular price
-
In stock
Quantity Price Breaks
10
$49.88
19
$47.08
29
$46.52
39
$45.96
49
$45.40
74
$44.84
99
$42.04
199
$41.48
249
$40.92
499
$40.36
999
$39.24
SKU:
NJ2306-CDX
Codex NJ2306 Single Row Cylindrical Roller Bearing 30x72x27mm
- Regular price
- $56.05 ex VAT
- Sale price
- $56.05
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 30mm |
| D | = | 72mm |
| B | = | 27mm |
| Dynamic load C | = | 83 kN |
| Static load Co | = | 75 kN |
| Fatigue load limit Pu | = | 9.65 kN |
| Reference speed | = | 11000 rpm |
| Limiting speed | = | 12000 rpm |
| Weight | = | 0.54 kg |
| Cage options | = | ML |
| d1 | = | 45mm |
| D1 | = | 58.9mm |
| F, E | = | 40.5mm |
| r1r2 min | = | 1.1mm |
| r3r4 min | = | 1.1mm |
| s | = | 2.4mm |
| da min | = | 37mm |
| da max | = | 39mm |
| db min | = | 47mm |
| Da max | = | 65mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
| kr | = | 0.25 |
