SKU: NJ2310-CDX

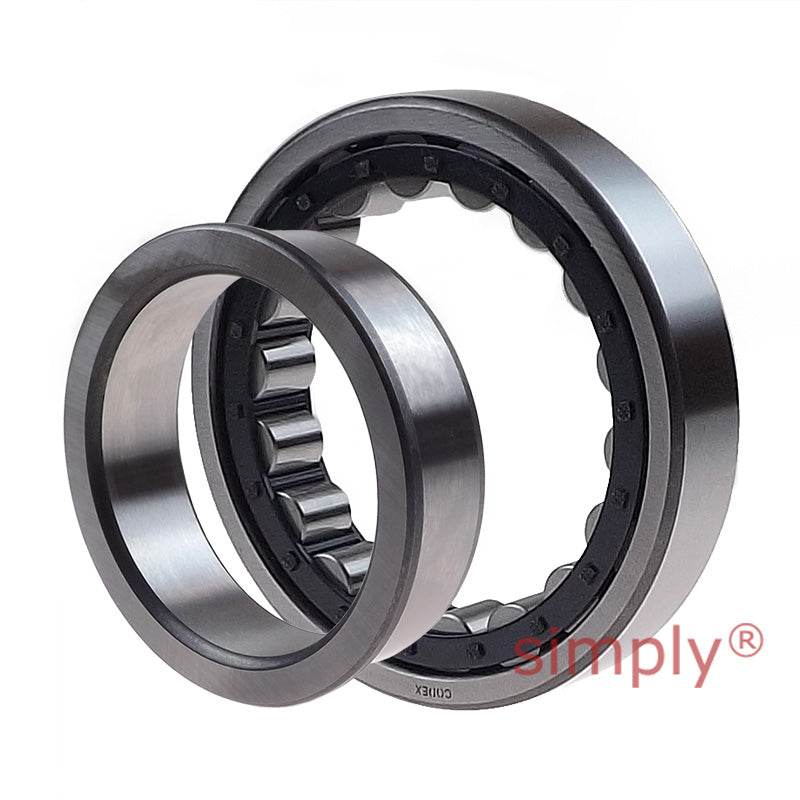

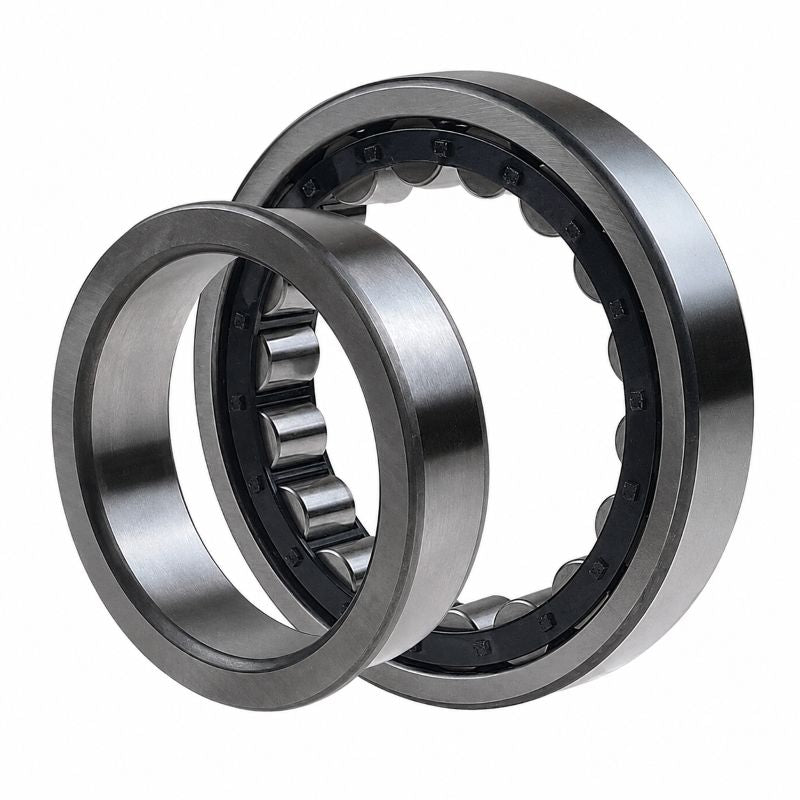

Codex NJ2310 Single Row Cylindrical Roller Bearing 50x110x40mm
- Regular price
- $118.52 ex VAT
- Sale price
- $118.52
- Regular price
-
In stock
Quantity Price Breaks
10
$105.48
19
$99.56
29
$98.37
39
$97.19
49
$96.00
74
$94.82
99
$88.89
199
$87.70
249
$86.52
499
$85.33
999
$82.96
SKU:
NJ2310-CDX
Codex NJ2310 Single Row Cylindrical Roller Bearing 50x110x40mm
- Regular price
- $118.52 ex VAT
- Sale price
- $118.52
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 50mm |
| D | = | 110mm |
| B | = | 40mm |
| Dynamic load C | = | 186 kN |
| Static load Co | = | 186 kN |
| Fatigue load limit Pu | = | 24.5 kN |
| Reference speed | = | 6700 rpm |
| Limiting speed | = | 8000 rpm |
| Weight | = | 1.77 kg |
| Cage options | = | ML |
| d1 | = | 71.2mm |
| D1 | = | 92.1mm |
| F, E | = | 65mm |
| r1r2 min | = | 2mm |
| r3r4 min | = | 2mm |
| s | = | 3.4mm |
| da min | = | 61mm |
| da max | = | 63mm |
| db min | = | 73mm |
| Da max | = | 99mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.25 |
