SKU: NJ2312-CDX

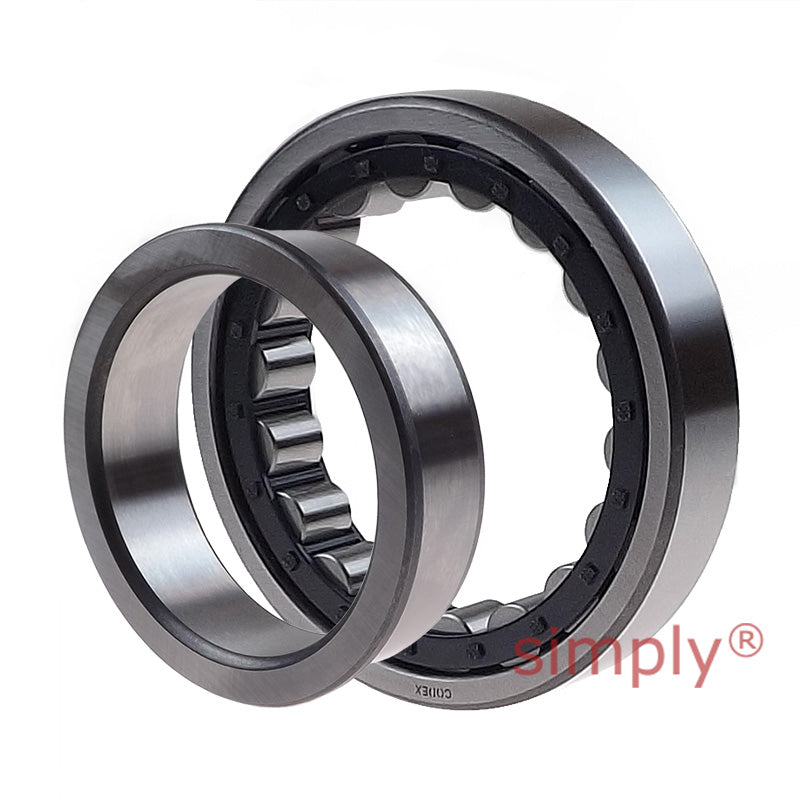

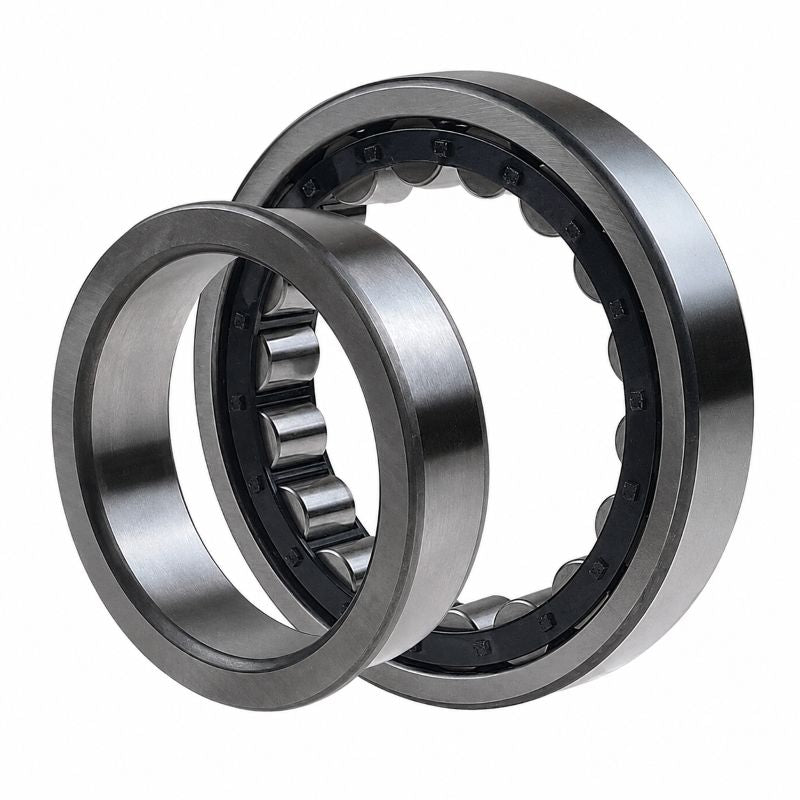

Codex NJ2312 Single Row Cylindrical Roller Bearing 60x130x46mm

Name: Codex NJ2312 Single Row Cylindrical Roller Bearing 60x130x46mm
Brand: Codex
SKU: NJ2312-CDX
Price: 167.52 USD
Availability: InStock

$167.52 ex VAT

Sale Sold out

In stock

Price Break

10+ $112.21

19+ $105.90

29+ $104.64

39+ $103.38

49+ $102.12

74+ $100.86

99+ $94.56

199+ $93.30

249+ $92.04

499+ $90.78

999+ $88.25

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction.
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 60mm
Outside Diameter:: 130mm
Width:: 46mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	60mm
D	130mm
B	46mm
Dynamic load C	260 kN
Static load Co	265 kN
Fatigue load limit Pu	34.5 kN
Reference speed	5600 rpm
Limiting speed	6700 rpm
Weight	2.8 kg
Cage options	ML
d1	84.3mm
D1	110mm
F, E	77mm
r1r2 min	2.1mm
r3r4 min	2.1mm
s	3.6mm
da min	72mm
da max	74mm
db min	87mm
Da max	118mm
ra max	2mm
rb max	2mm
kr	0.25
Angle ring	HJ2312EC
Angle ring weight	0.24kg
B1	9mm
B2	16mm
