SKU: NJ2315-CDX

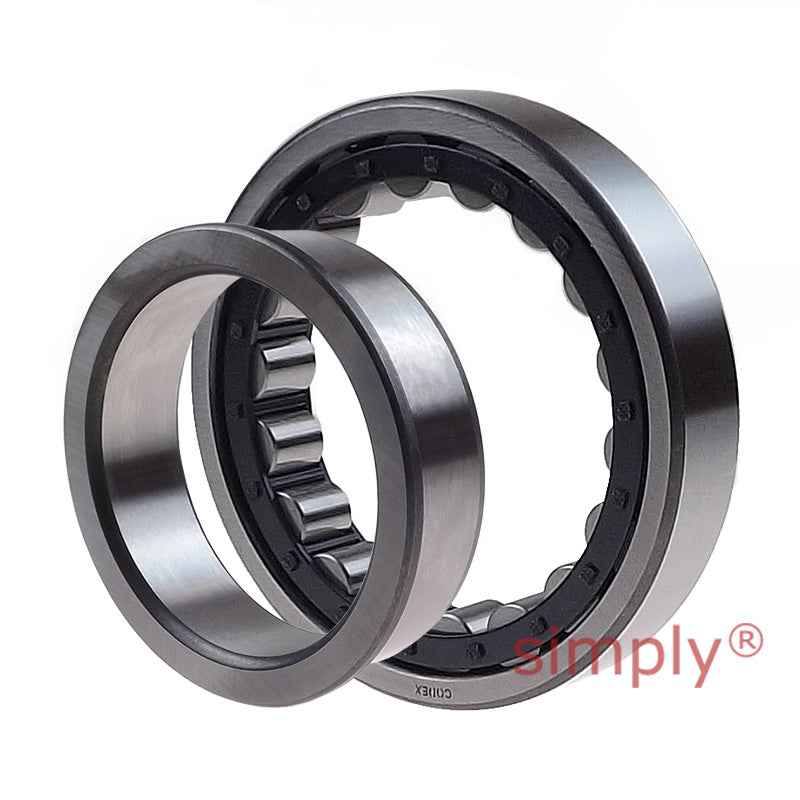

Codex NJ2315 Single Row Cylindrical Roller Bearing 75x160x55mm

Name: Codex NJ2315 Single Row Cylindrical Roller Bearing 75x160x55mm
Brand: Codex
SKU: NJ2315-CDX
Price: 315.07 USD
Availability: InStock

$315.07 ex VAT

Sale Sold out

In stock

Price Break

10+ $211.04

19+ $199.19

29+ $196.81

39+ $194.44

49+ $192.07

74+ $189.70

99+ $177.84

199+ $175.47

249+ $173.10

499+ $170.73

999+ $165.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 75mm
Outside Diameter:: 160mm
Width:: 55mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	75mm
D	160mm
B	55mm
Dynamic load C	380 kN
Static load Co	400 kN
Fatigue load limit Pu	50 kN
Reference speed	4500 rpm
Limiting speed	5300 rpm
Weight	5 kg
Cage options	ML
d1	104mm
D1	136mm
F, E	95mm
r1r2 min	2.1mm
r3r4 min	2.1mm
s	4.8mm
da min	87mm
da max	92mm
db min	107mm
Da max	148mm
ra max	2mm
rb max	2mm
kr	0.25
Angle ring	HJ2315EC
Angle ring weight	0.42kg
B1	11mm
B2	19.5mm
