SKU: NJ2316-CDX

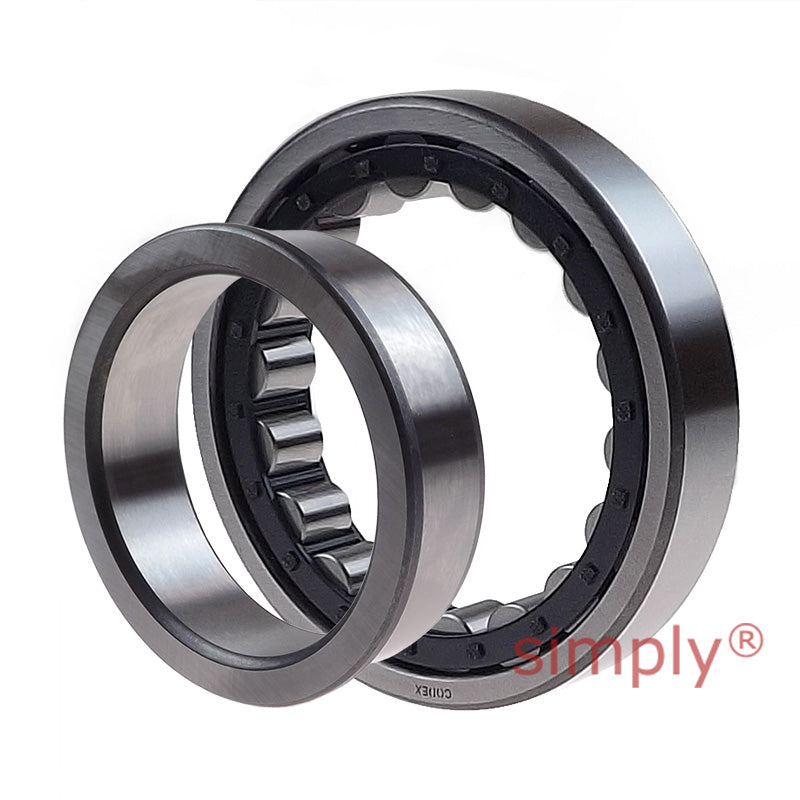

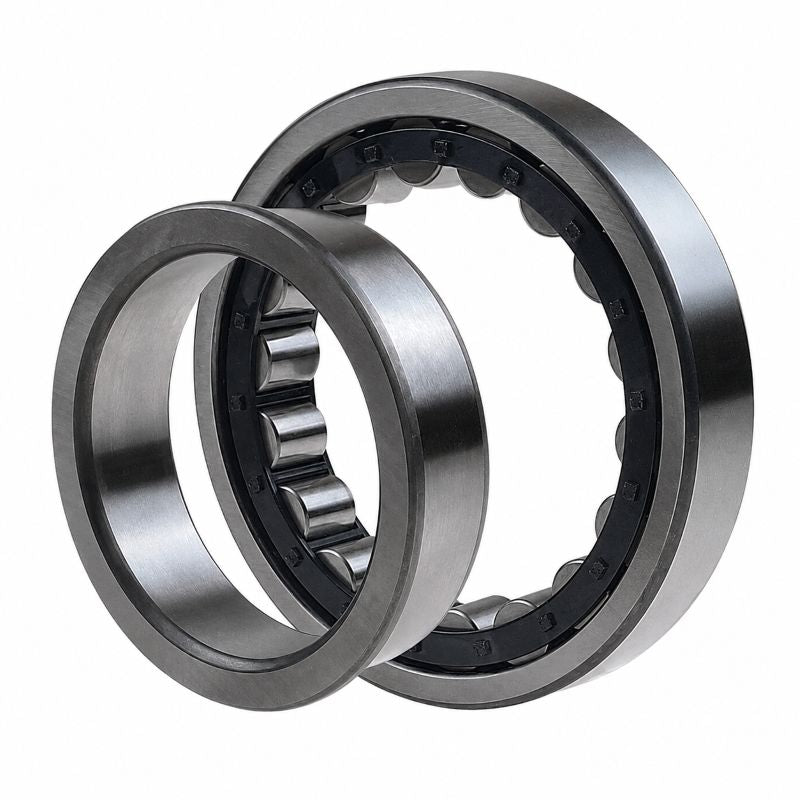

Codex NJ2316 Single Row Cylindrical Roller Bearing 80x170x58mm

Name: Codex NJ2316 Single Row Cylindrical Roller Bearing 80x170x58mm
Brand: Codex
SKU: NJ2316-CDX
Price: 339.87 USD
Availability: InStock

$339.87 ex VAT

Sale Sold out

In stock

Price Break

10+ $227.66

19+ $214.87

29+ $212.31

39+ $209.75

49+ $207.19

74+ $204.63

99+ $191.84

199+ $189.29

249+ $186.73

499+ $184.17

999+ $179.05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 80mm
Outside Diameter:: 170mm
Width:: 58mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	80mm
D	170mm
B	58mm
Dynamic load C	415 kN
Static load Co	440 kN
Fatigue load limit Pu	55 kN
Reference speed	4300 rpm
Limiting speed	5000 rpm
Weight	5.95 kg
Cage options	M.ML
d1	110mm
D1	144mm
F, E	101mm
r1r2 min	2.1mm
r3r4 min	2.1mm
s	5.1mm
da min	92mm
da max	98mm
db min	113mm
Da max	158mm
ra max	2mm
rb max	2mm
kr	0.25
Angle ring	HJ2316EC
Angle ring weight	0.48kg
B1	11mm
B2	20mm
