SKU: NJ2318ECP/C3-SKF

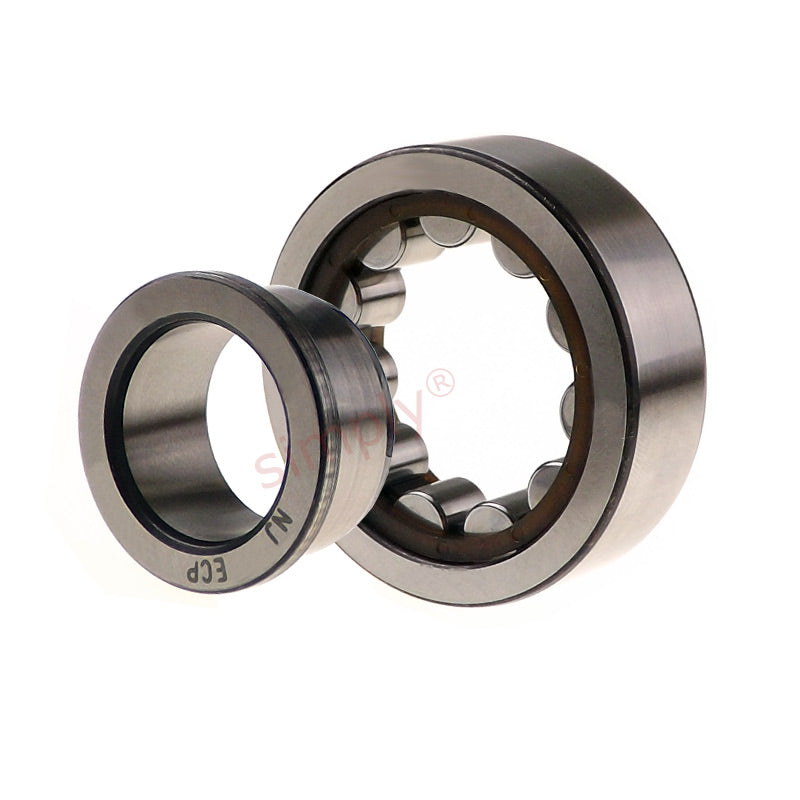

SKF NJ2318ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 90x190x64mm
SKF NJ2318ECPC3 Single Row Cylindrical Roller Bearing with Polyamide Cage 90x190x64mm
Out of stock
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 90mm
- Outside Diameter:
- 190mm
- Width:
- 64mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 90mm |
|---|---|
| D | 190mm |
| B | 64mm |
| Dynamic load C | 500 kN |
| Static load Co | 540 kN |
| Fatigue load limit Pu | 65.5 kN |
| Reference speed | 3800 rpm |
| Limiting speed | 4500 rpm |
| Weight | 8.15 kg |
| Alt cage | J.ML.M |
| d1 | 124mm |
| D1 | 162mm |
| F,E | 113.5mm |
| r1r2 min | 3mm |
| r3r4 min | 3mm |
| S | 6mm |
| da min | 104mm |
| da max | 110mm |
| db | 127mm |
| Da max | 176mm |
| ra max | 2.5mm |
| rb max | 2.5mm |
| kr | 0.25 |
| Angle ring | HJ2318EC |
| Angle ring weight | 0.66 kg |
| B1 | 12mm |
| B2 | 22mm |
