SKU: NJ304-CDX

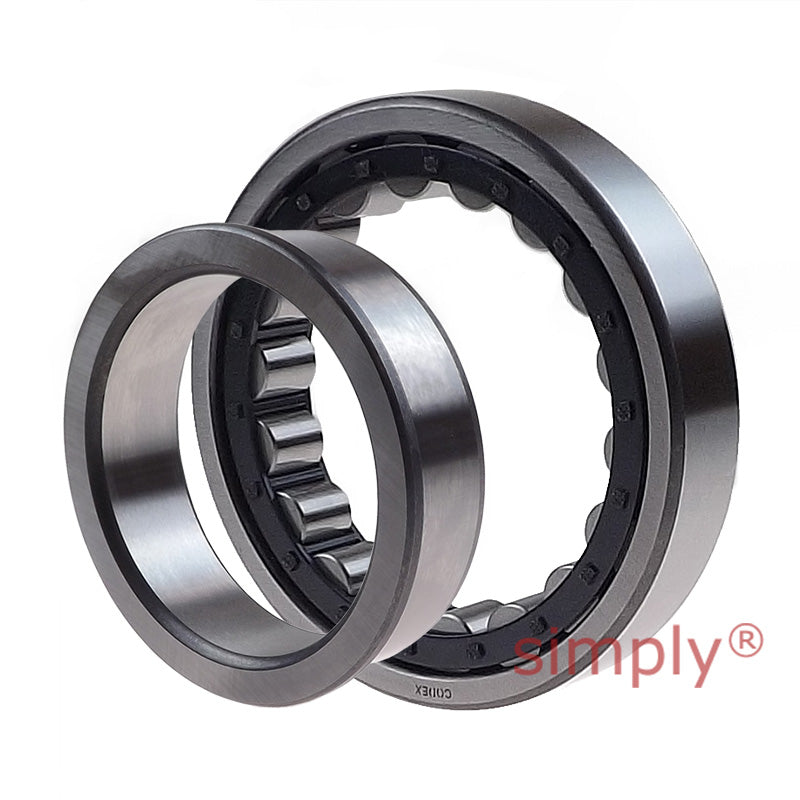

Codex NJ304 Single Row Cylindrical Roller Bearing 20x52x15mm

Name: Codex NJ304 Single Row Cylindrical Roller Bearing 20x52x15mm
Brand: Codex
SKU: NJ304-CDX
Price: 30.96 USD
Availability: InStock

$30.96 ex VAT

Sale Sold out

In stock

Price Break

10+ $20.74

19+ $19.57

29+ $19.34

39+ $19.11

49+ $18.87

74+ $18.64

99+ $17.48

199+ $17.24

249+ $17.01

499+ $16.78

999+ $16.31

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 20mm
Outside Diameter:: 52mm
Width:: 15mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	20mm
D	52mm
B	15mm
Dynamic load C	35.5 kN
Static load Co	26 kN
Fatigue load limit Pu	3.25 kN
Reference speed	15000 rpm
Limiting speed	18000 rpm
Weight	0.15 kg
d1	31.2mm
D1	42.4mm
F, E	27.5mm
r1r2 min	1.1mm
r3r4 min	0.6mm
s	0.9mm
da min	27mm
da max	29mm
db min	33mm
Da max	45mm
ra max	1mm
rb max	0.6mm
kr	0.15
Angle ring	HJ304EC
Angle ring weight	0.017kg
B1	4mm
B2	6.5mm
