SKU: NJ304ECP-SKF

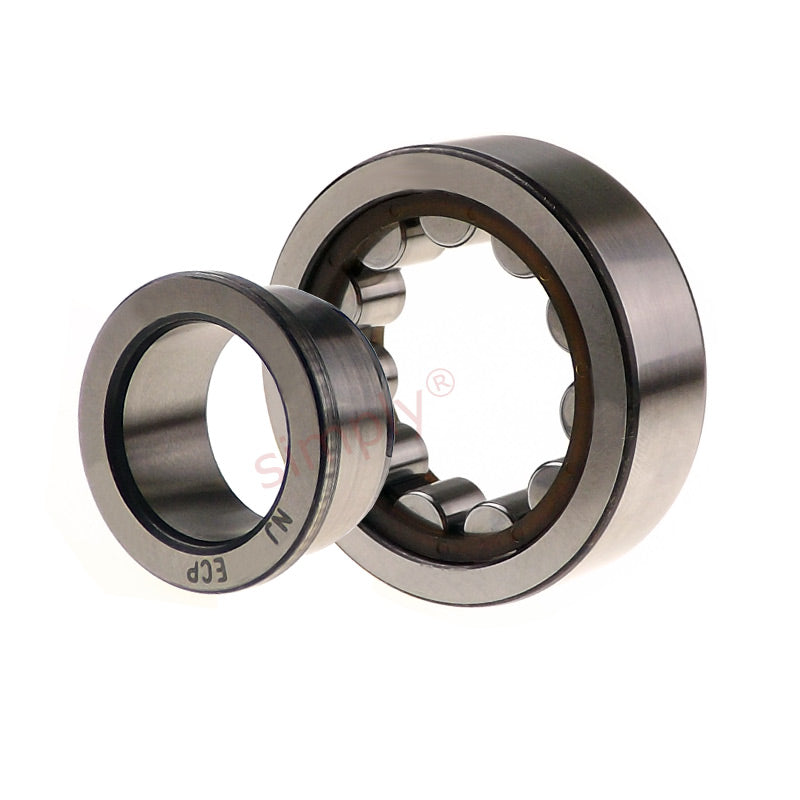

SKF NJ304ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 20x52x15mm
SKF NJ304ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 20x52x15mm
Regular price
$53.00
ex VAT
Regular price
Sale price
$53.00
ex VAT
In stock
Price Break
10+
$35.50
19+
$33.51
29+
$33.11
39+
$32.71
49+
$32.31
74+
$31.91
99+
$29.92
199+
$29.52
249+
$29.12
499+
$28.72
999+
$27.92
Quantity
Couldn't load pickup availability
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 52mm
- Width:
- 15mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 20mm |
|---|---|
| D | 52mm |
| B | 15mm |
| Dynamic load C | 35.5 kN |
| Static load Co | 26 kN |
| Fatigue load limit Pu | 3.25 kN |
| Reference speed | 15000 rpm |
| Limiting speed | 18000 rpm |
| Weight | 0.15 kg |
| d1 | 31.2mm |
| D1 | 42.4mm |
| F,E | 27.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 0.6mm |
| S | 0.9mm |
| da min | 27mm |
| da max | 29mm |
| db | 33mm |
| Da max | 45mm |
| ra max | 1mm |
| rb max | 0.6mm |
| kr | 0.15 |
| Angle ring | HJ304EC |
| Angle Ring Weight | 0.017 kg |
| B1 | 4mm |
| B2 | 6.5mm |
