SKU: NJ306-CDX

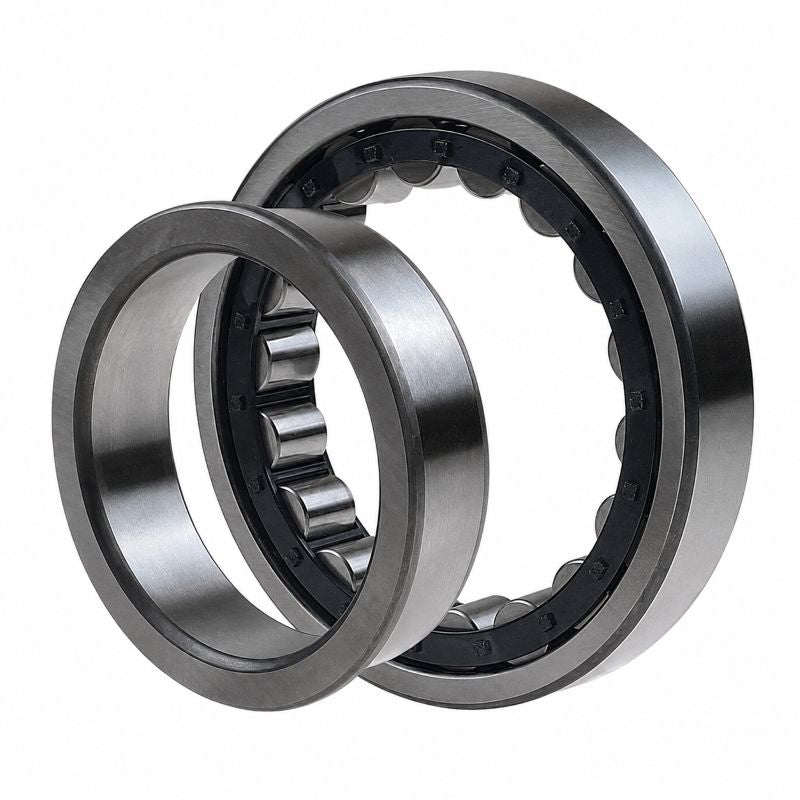

Codex NJ306 Single Row Cylindrical Roller Bearing 30x72x19mm
- Regular price
- $44.21 ex VAT
- Sale price
- $44.21
- Regular price
-
In stock
Quantity Price Breaks
10
$39.35
19
$37.14
29
$36.69
39
$36.25
49
$35.81
74
$35.37
99
$33.16
199
$32.72
249
$32.27
499
$31.83
999
$30.95
SKU:
NJ306-CDX
Codex NJ306 Single Row Cylindrical Roller Bearing 30x72x19mm
- Regular price
- $44.21 ex VAT
- Sale price
- $44.21
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 30mm |
| D | = | 72mm |
| B | = | 19mm |
| Dynamic load C | = | 58.5 kN |
| Static load Co | = | 48 kN |
| Fatigue load limit Pu | = | 6.2 kN |
| Reference speed | = | 11000 rpm |
| Limiting speed | = | 12000 rpm |
| Weight | = | 0.36 kg |
| Cage options | = | J.M.ML |
| d1 | = | 45mm |
| D1 | = | 58.9mm |
| F, E | = | 40.5mm |
| r1r2 min | = | 1.1mm |
| r3r4 min | = | 1.1mm |
| s | = | 1.4mm |
| da min | = | 37mm |
| da max | = | 39mm |
| db min | = | 47mm |
| Da max | = | 65mm |
| ra max | = | 1mm |
| rb max | = | 1mm |
| kr | = | 0.15 |
| Angle ring | = | HJ306EC |
| Angle ring weight | = | 0.042kg |
| B1 | = | 5mm |
| B2 | = | 8.5mm |
