SKU: NJ306ECP-SKF

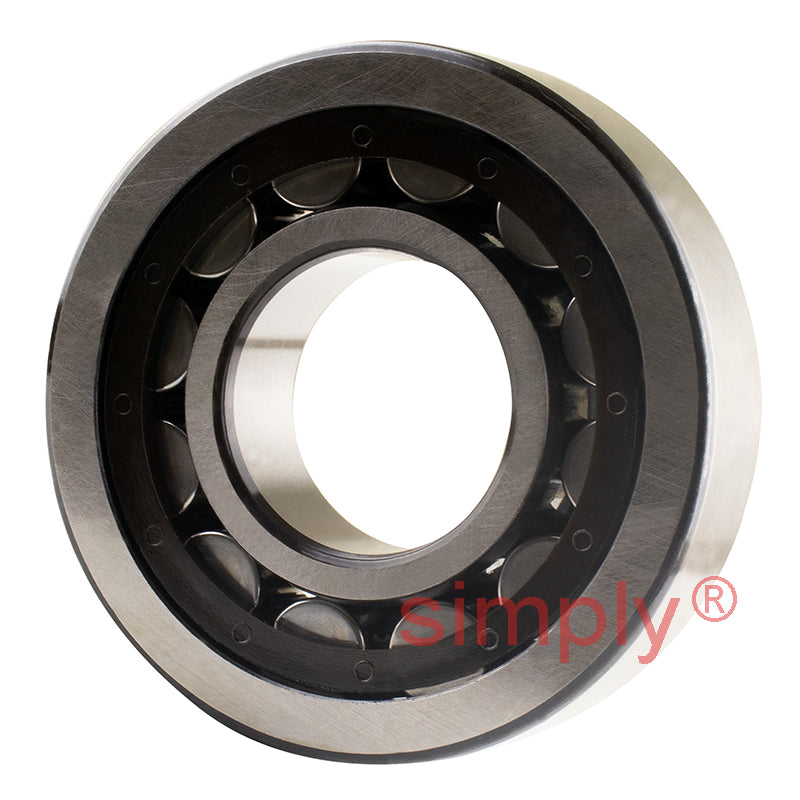

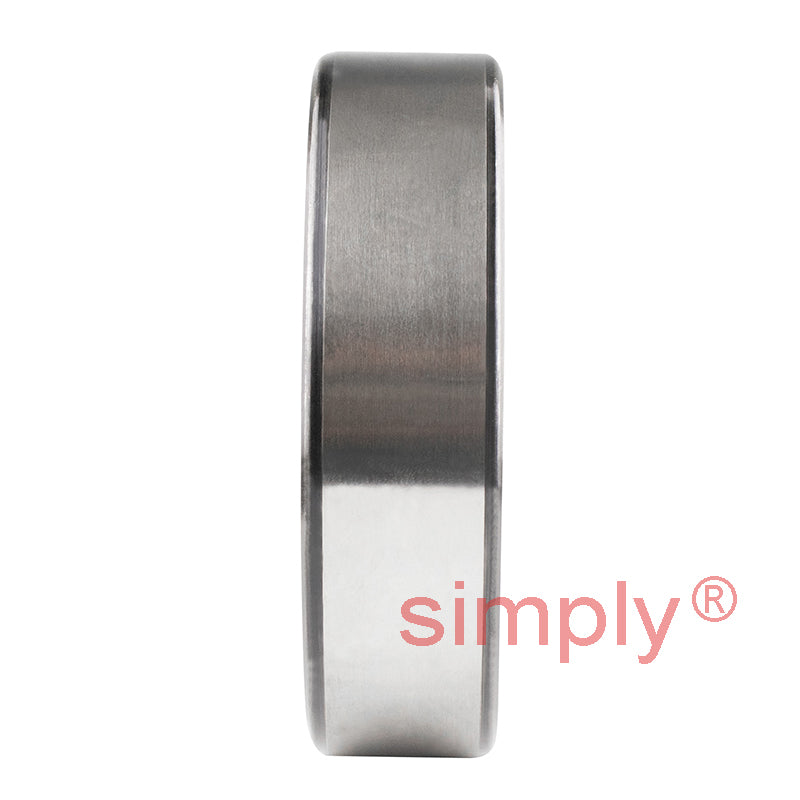

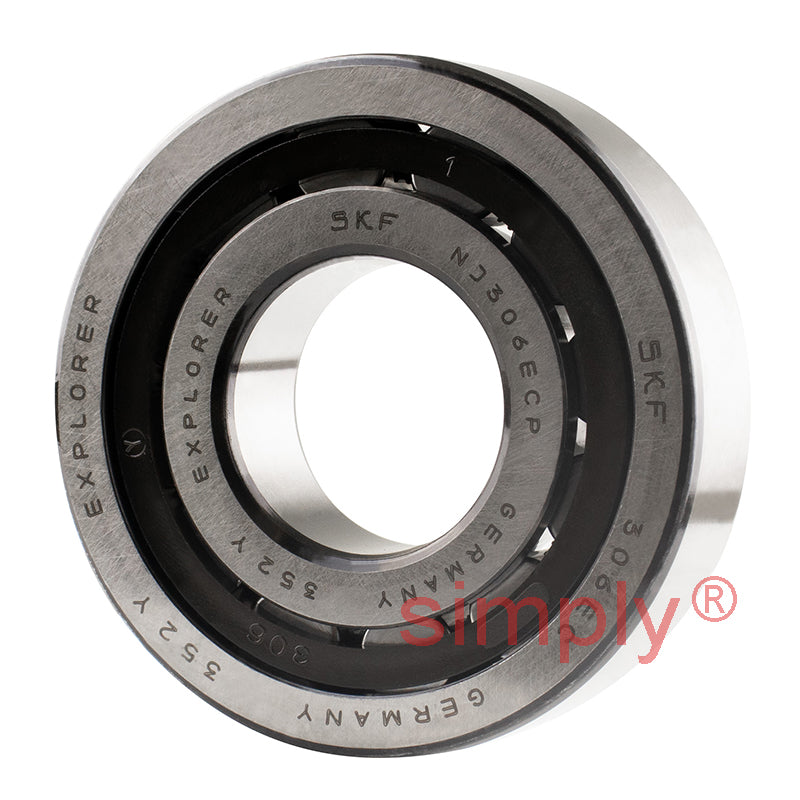

SKF NJ306ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 30x72x19mm
SKF NJ306ECP Single Row Cylindrical Roller Bearing with Polyamide Cage 30x72x19mm
Regular price
$55.02
ex VAT
Regular price
Sale price
$55.02
ex VAT
In stock
Price Break
10+
$36.86
19+
$34.79
29+
$34.37
39+
$33.96
49+
$33.54
74+
$33.13
99+
$31.06
199+
$30.64
249+
$30.23
499+
$29.82
999+
$28.99
Quantity
Couldn't load pickup availability
Description
Description
|
SKF NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 72mm
- Width:
- 19mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 30mm |
|---|---|
| D | 72mm |
| B | 19mm |
| Dynamic load C | 58.5 kN |
| Static load Co | 48 kN |
| Fatigue load limit Pu | 6.2 kN |
| Reference speed | 11000 rpm |
| Limiting speed | 12000 rpm |
| Weight | 0.36 kg |
| Alt cage | J.M.ML |
| d1 | 45mm |
| D1 | 58.9mm |
| F,E | 40.5mm |
| r1r2 min | 1.1mm |
| r3r4 min | 1.1mm |
| S | 1.4mm |
| da min | 37mm |
| da max | 39mm |
| db | 47mm |
| Da max | 65mm |
| ra max | 1mm |
| rb max | 1mm |
| kr | 0.15 |
| Angle ring | HJ306EC |
| Angle Ring Weight | 0.042 kg |
| B1 | 5mm |
| B2 | 8.5mm |
