SKU: NJ307-CDX

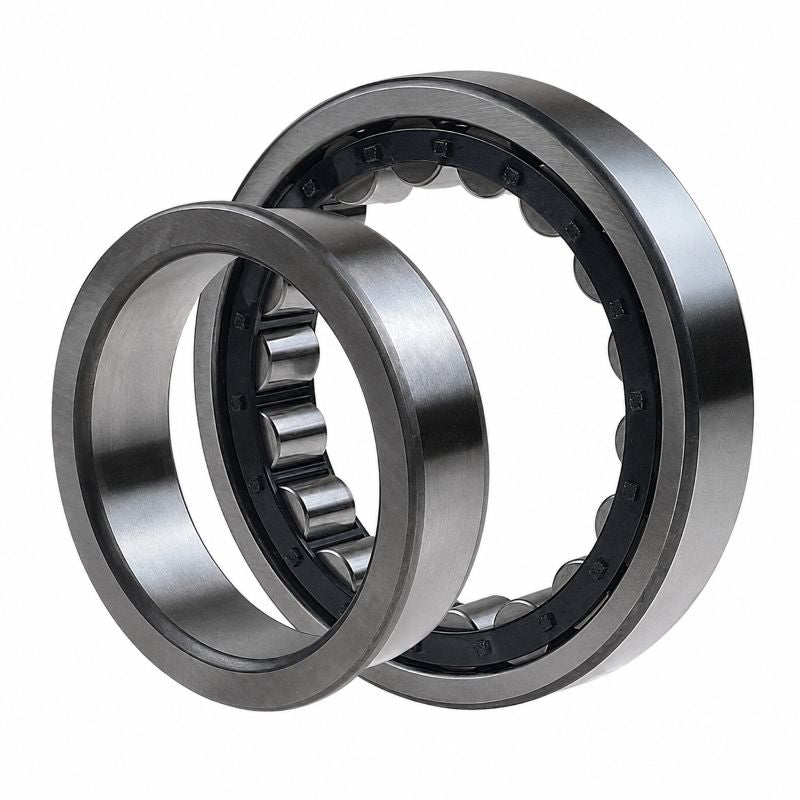

Codex NJ307 Single Row Cylindrical Roller Bearing 35x80x21mm
- Regular price
- $48.87 ex VAT
- Sale price
- $48.87
- Regular price
-
In stock
Quantity Price Breaks
10
$43.49
19
$41.05
29
$40.56
39
$40.07
49
$39.58
74
$39.10
99
$36.65
199
$36.16
249
$35.68
499
$35.19
999
$34.21
SKU:
NJ307-CDX
Codex NJ307 Single Row Cylindrical Roller Bearing 35x80x21mm
- Regular price
- $48.87 ex VAT
- Sale price
- $48.87
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 35mm |
| D | = | 80mm |
| B | = | 21mm |
| Dynamic load C | = | 75 kN |
| Static load Co | = | 63 kN |
| Fatigue load limit Pu | = | 8.15 kN |
| Reference speed | = | 9500 rpm |
| Limiting speed | = | 11000 rpm |
| Weight | = | 0.49 kg |
| Cage options | = | J.M.ML |
| d1 | = | 51mm |
| D1 | = | 66.3mm |
| F, E | = | 46.2mm |
| r1r2 min | = | 1.5mm |
| r3r4 min | = | 1.1mm |
| s | = | 1.2mm |
| da min | = | 44mm |
| da max | = | 44mm |
| db min | = | 53mm |
| Da max | = | 71mm |
| ra max | = | 1.5mm |
| rb max | = | 1mm |
| kr | = | 0.15 |
| Angle ring | = | HJ307EC |
| Angle ring weight | = | 0.058kg |
| B1 | = | 6mm |
| B2 | = | 9.5mm |
