SKU: NJ308-E-TVP2-C3-FAG

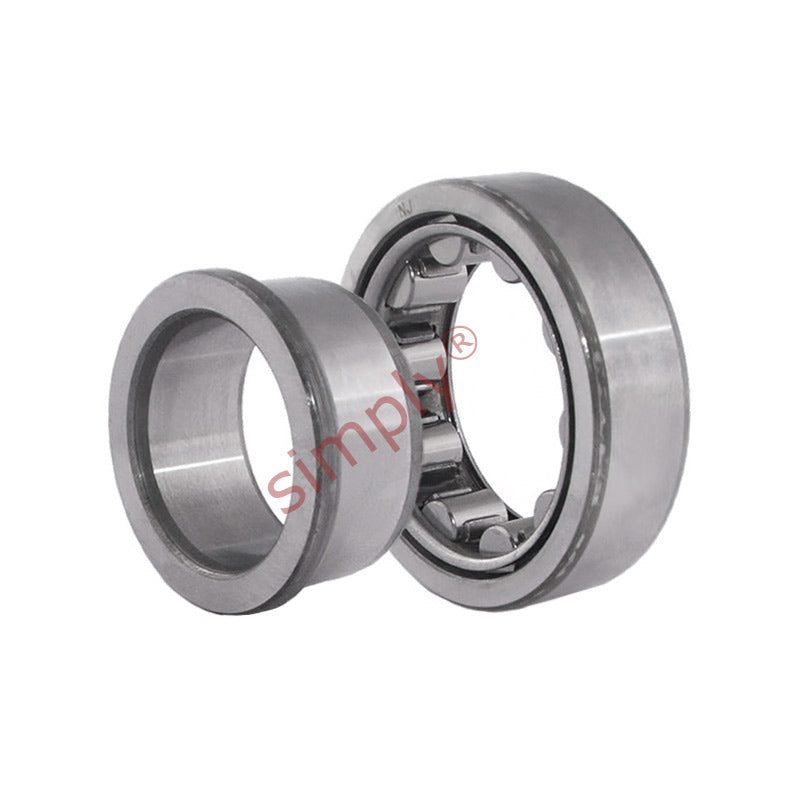

NJ308-E-TVP2-C3 X-life Cylindrical Roller Bearing with Cage 40x90x23mm

Name: NJ308-E-TVP2-C3 X-life Cylindrical Roller Bearing with Cage 40x90x23mm
Brand: FAG
SKU: NJ308-E-TVP2-C3-FAG
Price: 71.91 USD
Availability: InStock

$71.91 ex VAT

Sale Sold out

In stock

Price Break

10+ $48.17

19+ $45.46

29+ $44.92

39+ $44.38

49+ $43.84

74+ $43.30

99+ $40.59

199+ $40.05

249+ $39.51

499+ $38.97

999+ $37.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction.
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: FAG - High Quality
Inside Diameter:: 40mm
Outside Diameter:: 90mm
Width:: 23mm
Seals / Shields:: None
Clearance:: C3

Technical

d	40
D	90
B	23
r min	1.5
r1 min	1.5
s	1.3
E	80
F	52
D1	75.9
d1	57.6
da min	49
da max	51
dc min	60
Da max	81
ra max	1.5
Dynamic load	95000 N
Static load	78000 N
Fatigue limit load	12900 N
Limiting speed	7500 rpm
Reference speed	7300 rpm
Weight	0.674 kg
