SKU: NJ311-CDX

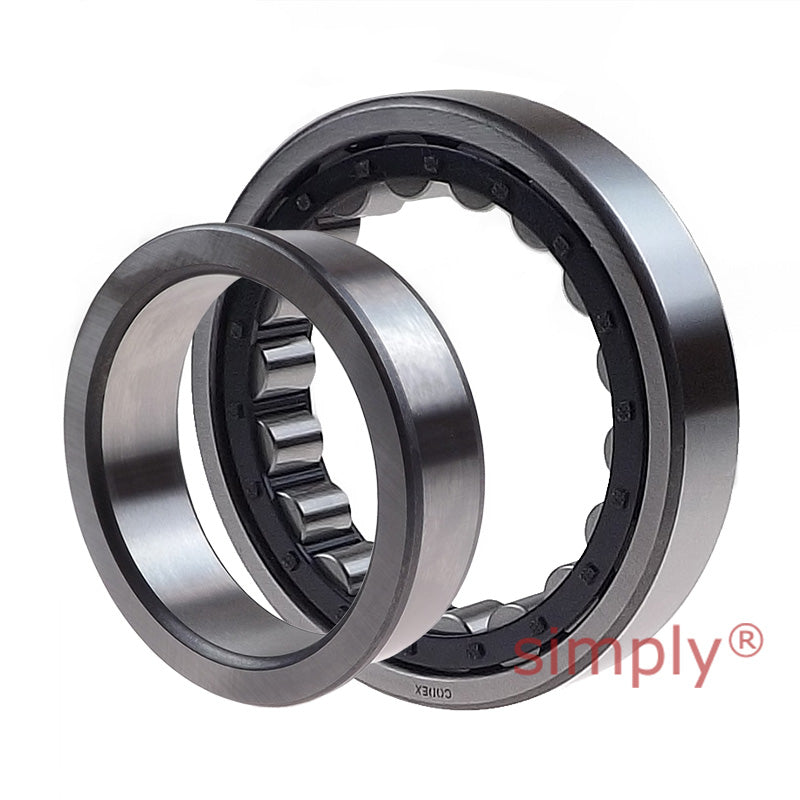

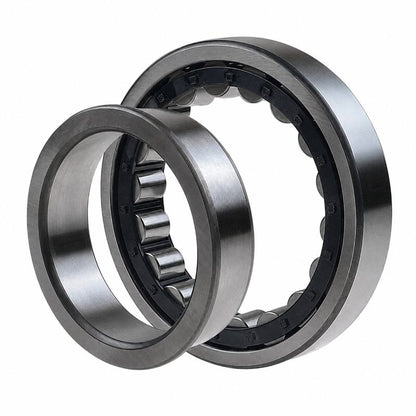

Codex NJ311 Single Row Cylindrical Roller Bearing 55x120x29mm

Name: Codex NJ311 Single Row Cylindrical Roller Bearing 55x120x29mm
Brand: Codex
SKU: NJ311-CDX
Price: 101.45 USD
Availability: InStock

$101.45 ex VAT

Sale Sold out

In stock

Price Break

10+ $67.95

19+ $64.13

29+ $63.37

39+ $62.60

49+ $61.84

74+ $61.08

99+ $57.26

199+ $56.50

249+ $55.73

499+ $54.97

999+ $53.44

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction.
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: Codex - Good Quality
Inside Diameter:: 55mm
Outside Diameter:: 120mm
Width:: 29mm
Seals / Shields:: None
Clearance:: * Standard

Technical

d	55mm
D	120mm
B	29mm
Dynamic load C	156 kN
Static load Co	143 kN
Fatigue load limit Pu	18.6 kN
Reference speed	6000 rpm
Limiting speed	7000 rpm
Weight	1.5 kg
Cage options	J.M.ML
d1	77.5mm
D1	101mm
F, E	70.5mm
r1r2 min	2mm
r3r4 min	2mm
s	2mm
da min	66mm
da max	68mm
db min	80mm
Da max	109mm
ra max	2mm
rb max	2mm
kr	0.15
Angle ring	HJ311EC
Angle ring weight	0.19kg
B1	9mm
B2	14mm
