SKU: NJ313-CDX

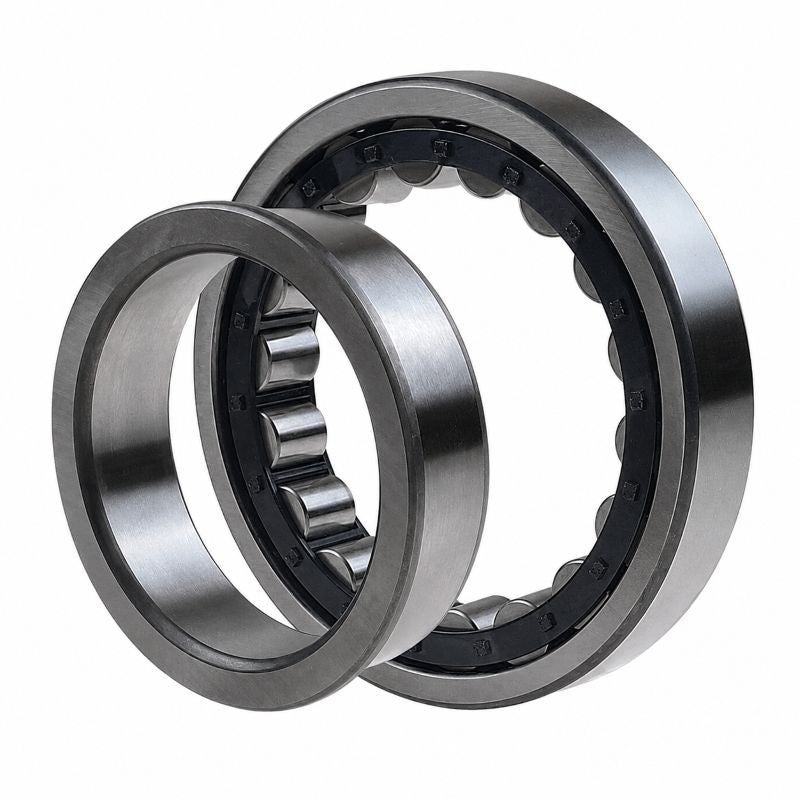

Codex NJ313 Single Row Cylindrical Roller Bearing 65x140x33mm
- Regular price
- $151.74 ex VAT
- Sale price
- $151.74
- Regular price
-
In stock
Quantity Price Breaks
10
$135.05
19
$127.46
29
$125.94
39
$124.43
49
$122.91
74
$121.39
99
$113.81
199
$112.29
249
$110.77
499
$109.25
999
$106.22
SKU:
NJ313-CDX
Codex NJ313 Single Row Cylindrical Roller Bearing 65x140x33mm
- Regular price
- $151.74 ex VAT
- Sale price
- $151.74
- Regular price
-
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
Technical
| d | = | 65mm |
| D | = | 140mm |
| B | = | 33mm |
| Dynamic load C | = | 212 kN |
| Static load Co | = | 196 kN |
| Fatigue load limit Pu | = | 25.5 kN |
| Reference speed | = | 5300 rpm |
| Limiting speed | = | 6000 rpm |
| Weight | = | 2.3 kg |
| Cage options | = | J.M.ML |
| d1 | = | 90.5mm |
| D1 | = | 119mm |
| F, E | = | 82.5mm |
| r1r2 min | = | 2.1mm |
| r3r4 min | = | 2.1mm |
| s | = | 2.2mm |
| da min | = | 77mm |
| da max | = | 80mm |
| db min | = | 93mm |
| Da max | = | 128mm |
| ra max | = | 2mm |
| rb max | = | 2mm |
| kr | = | 0.15 |
| Angle ring | = | HJ313EC |
| Angle ring weight | = | 0.27kg |
| B1 | = | 10mm |
| B2 | = | 15.5mm |
