SKU: NJ316-E-TVP2/C4-FAG

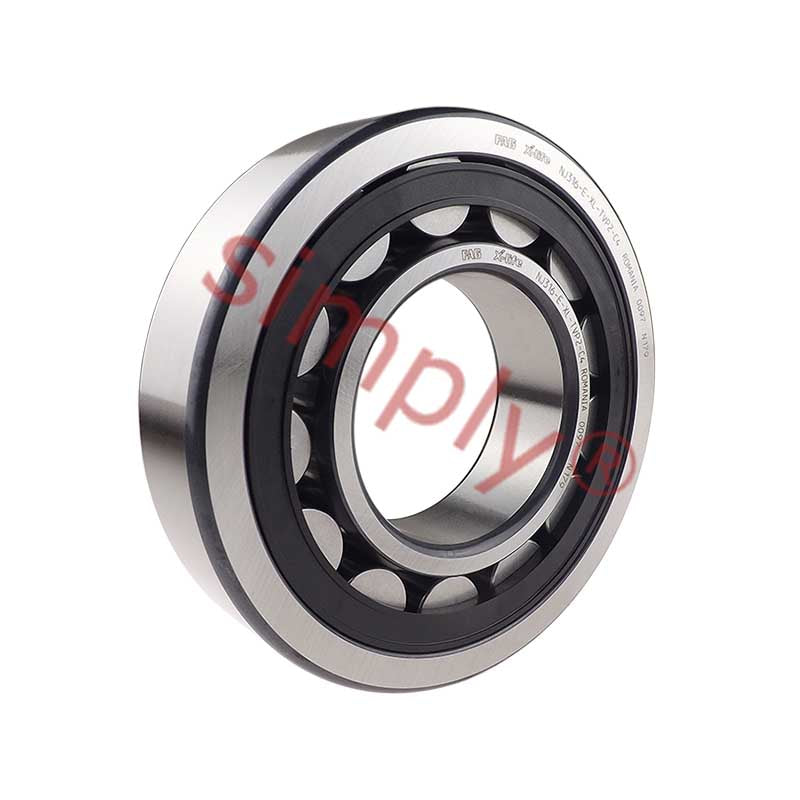

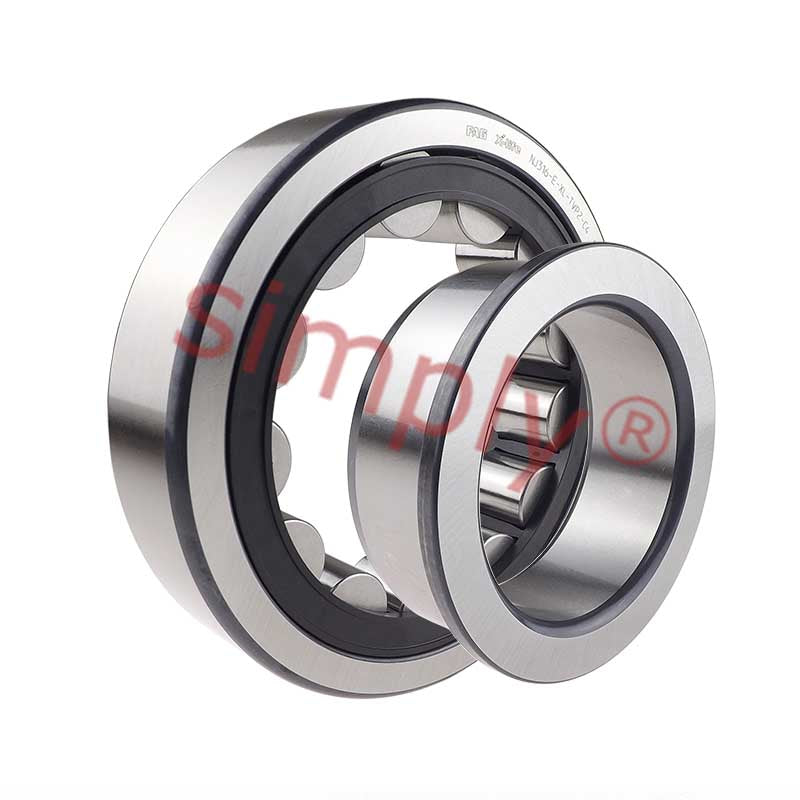

NJ316-E-TVP2-C4 X-life Cylindrical Roller Bearing with Cage 80x170x39mm

Name: NJ316-E-TVP2-C4 X-life Cylindrical Roller Bearing with Cage 80x170x39mm
Brand: FAG
SKU: NJ316-E-TVP2/C4-FAG
Price: 455.92 USD
Availability: InStock

$455.92 ex VAT

Sale Sold out

Low stock

Price Break

10+ $305.39

19+ $288.23

29+ $284.80

39+ $281.37

49+ $277.94

74+ $274.50

99+ $257.35

199+ $253.92

249+ $250.48

499+ $247.05

999+ $240.19

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

NUP Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the rollers are assembled, the inner raceway has one flange, the supplied none integral ring forms the other flange, enabling the ease of assembly and permitting axial location in both directions.
Benefits: Axial location, ease of assembly and fitting

Brand / Quality:: FAG - High Quality
Inside Diameter:: 80mm
Outside Diameter:: 170mm
Width:: 39mm
Seals / Shields:: None
Clearance:: C4

Technical

d	80
D	170
B	39
r min	2.1
r1 min	2.1
s	0.7
E	151
F	101
D1	143.9
d1	110.4
da min	92
da max	99
dc min	114
Da max	158
ra max	2.1
Dynamic load	300000 N
Static load	275000 N
Fatigue limit load	46000 N
Limiting speed	3800 rpm
Reference speed	4150 rpm
Weight	4.03 kg
