SKU: NJ419-M1-C3

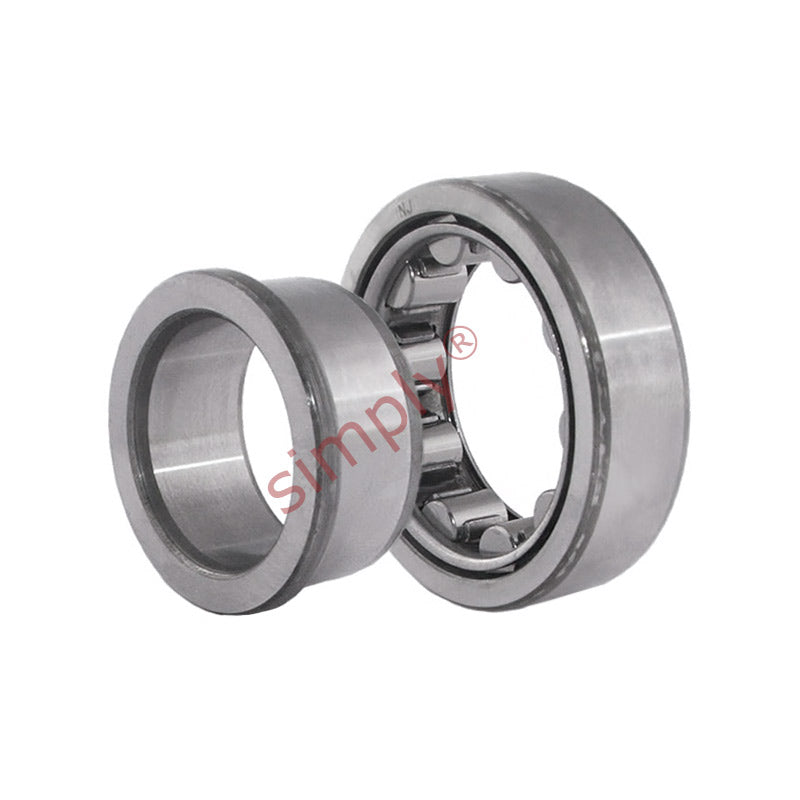

NJ419-M1-C3 X-life Cylindrical Roller Bearing with Cage 95x240x55mm
NJ419-M1-C3 X-life Cylindrical Roller Bearing with Cage 95x240x55mm
Out of stock
Description
Description
|
NJ Series Single Row Cylindrical Roller Bearings: The outer ring of this type has two integral flanges around which the cage and rollers are assembled, the inner raceway has a single flange permitting the ease of assembly but limiting axial location to one direction. Benefits: Axial location, ease of assembly and fitting |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 95mm
- Outside Diameter:
- 240mm
- Width:
- 55mm
- Seals / Shields:
- None
- Clearance:
- C3
Technical
Technical
| d | 95 |
|---|---|
| D | 240 |
| B | 55 |
| r min | 4 |
| r1 min | 4 |
| s | 5.2 |
| E | 201.5 |
| F | 133.5 |
| D1 | 189.7 |
| d1 | 146.8 |
| da min | 115 |
| da max | 132 |
| dc min | 149 |
| Da max | 220 |
| ra max | 3 |
| Dynamic load | 495000 N |
| Static load | 470000 N |
| Fatigue limit load | 58000 N |
| Limiting speed | 4800 rpm rpm |
| Weight | 14.1 kg |
