SKU: NJG2305VH-EU

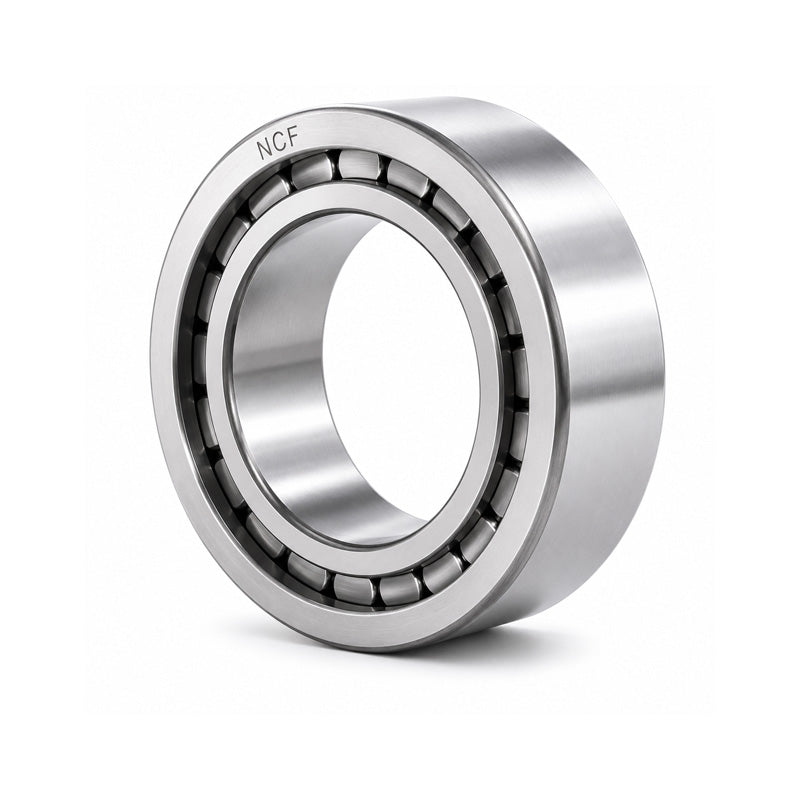

NJG2305VH Budget Single Row Cylindrical Roller Bearing 25x62x24mm
NJG2305VH Budget Single Row Cylindrical Roller Bearing 25x62x24mm
Out of stock
Share this product
Description
Description
|
NJG Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the outer race and one on the inner raceway serving to permit axial location in one direction only. They are designed for slow moving heavily loaded application. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 62mm
- Width:
- 24mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 25mm |
|---|---|
| D | 62mm |
| B | 24mm |
| Dynamic load C | 68.2 kN |
| Static load Co | 68 kN |
| Fatigue load limit Pu | 8.5 kN |
| Reference speed | 4500 rpm |
| Limiting speed | 5600 rpm |
| Weight | 0.38 kg |
| d1 | 36.1mm |
| D1 | 48.2mm |
| E, F | 31.74mm |
| r1r2 min | 1.1mm |
| s | 1.7mm |
| da min | 32mm |
| das | 33.9mm |
| db max | 30mm |
| Da max | 55mm |
| ra max | 1mm |
