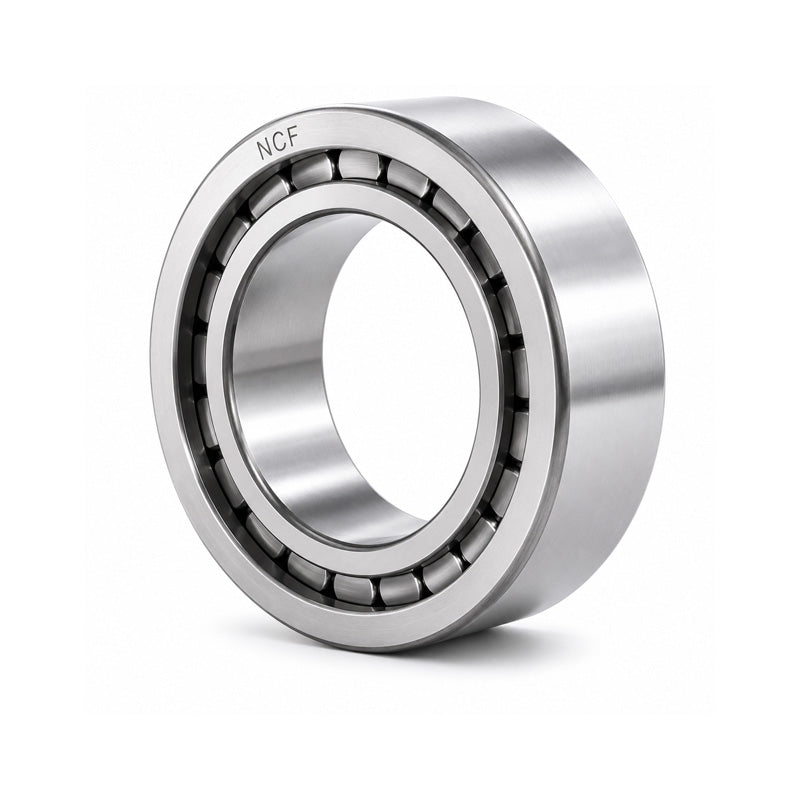

SKF NJG2320VH Single Row Cylindrical Roller Bearing 100x215x73mm
SKF NJG2320VH Single Row Cylindrical Roller Bearing 100x215x73mm
Out of stock
Description
Description
|
SKF NJG Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the outer race and one on the inner raceway serving to permit axial location in one direction only. They are designed for slow moving heavily loaded application. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing. Benefits: Tolerate axial load in one direction, none separable construction |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 215mm
- Width:
- 73mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 100mm |
|---|---|
| D | 215mm |
| B | 73mm |
| Dynamic load C | 682 kN |
| Static load Co | 865 kN |
| Fatigue load limit Pu | 104 kN |
| Reference speed | 1200 rpm |
| Limiting speed | 1500 rpm |
| Weight | 13 kg |
| d1 | 133mm |
| D1 | 173mm |
| E/F | 119.3mm |
| r1r2 min | 3mm |
| S | 4mm |
| da min | 114mm |
| das | 126mm |
| db max | 119mm |
| Da max | 201mm |
| ra max | 2.5mm |
