SKU: NJG2348VH-EU

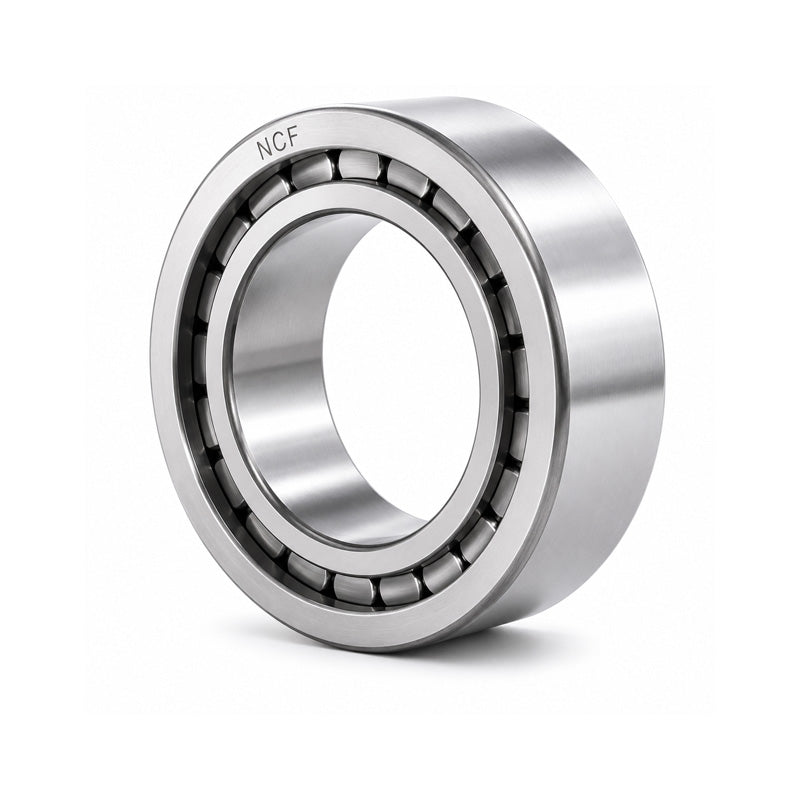

NJG2348VH Budget Single Row Cylindrical Roller Bearing 240x500x155mm
NJG2348VH Budget Single Row Cylindrical Roller Bearing 240x500x155mm
Out of stock
Share this product
Description
Description
|
NJG Series Single Row Full Complement Cylindrical Roller Bearings: Have integral locating flanges on the outer race and one on the inner raceway serving to permit axial location in one direction only. They are designed for slow moving heavily loaded application. Being of full complement design they have the maximum number of rollers and can tolerate heavy radial loads and tolerate small axial displacements from shaft expansion within the bearing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 240mm
- Outside Diameter:
- 500mm
- Width:
- 155mm
- Seals / Shields:
- None
- Clearance:
- * Standard
Technical
Technical
| d | 240mm |
|---|---|
| D | 500mm |
| B | 155mm |
| Dynamic load C | 2810 kN |
| Static load Co | 3900 kN |
| Fatigue load limit Pu | 345 kN |
| Reference speed | 500 rpm |
| Limiting speed | 630 rpm |
| Weight | 147 kg |
| d1 | 310mm |
| D1 | 403mm |
| E, F | 280.6mm |
| r1r2 min | 5mm |
| s | 10mm |
| da min | 260mm |
| das | 295mm |
| db max | 282mm |
| Da max | 480mm |
| ra max | 4mm |
