SKU: NK10/12TN-MB

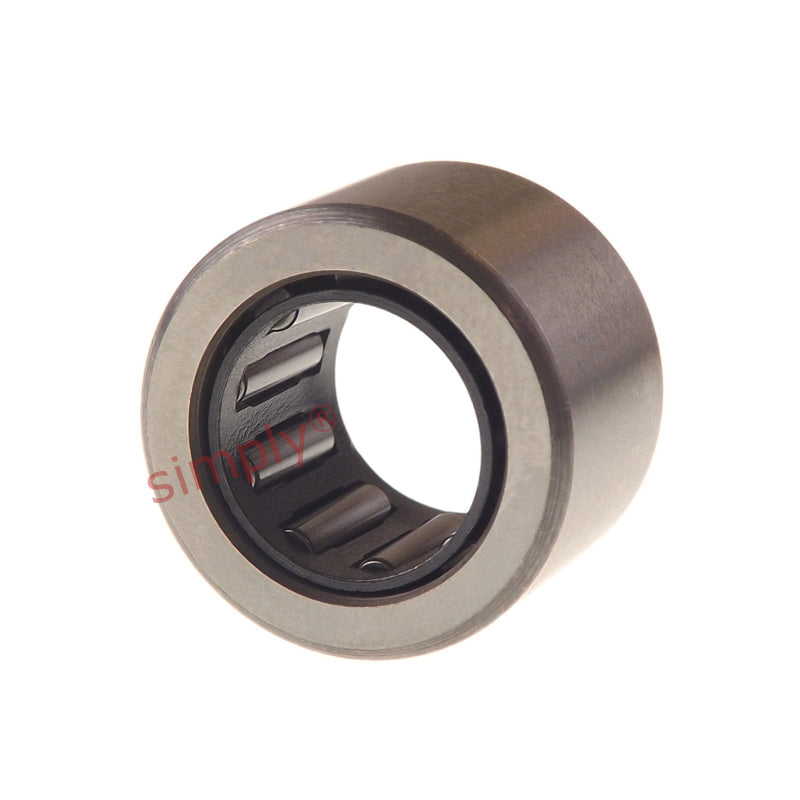

Major Brand NK10/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 10x17x12mm

Name: Major Brand NK10/12TN Needle Roller Bearing With Flanges without Shaft Sleeve 10x17x12mm
Brand: Major Brand
SKU: NK10/12TN-MB
Price: 11.65 USD
Availability: InStock

$11.65 ex VAT

Sale Sold out

In stock

Price Break

10+ $7.80

19+ $7.36

29+ $7.28

39+ $7.19

49+ $7.10

74+ $7.01

99+ $6.57

199+ $6.49

249+ $6.40

499+ $6.31

999+ $6.14

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads.
Benefits: Economical replacement, needles are retained within machined flange of the outer race.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 10mm
Outside Diameter:: 17mm
Width:: 12mm

Technical

Fw	10mm
D	17mm
C	12mm
Dynamic load	4400 N
Static load	5400 N
Fatigue load limit Pu	620 N
Speed in grease	22000 rpm
Speed in oil	34000 rpm
r1r2	0.3mm
Da max	15mm
ra max	0.3mm
Seal	G/SD10x17x3
Weight	10 g
