SKU: NK15/12-MB
Major Brand NK15/12 Needle Roller Bearing With Flanges without Shaft Sleeve 15x23x12mm
- Regular price
- $21.66 ex VAT
- Sale price
- $21.66
- Regular price
-
In stock
Quantity Price Breaks
10
$19.28
19
$18.19
29
$17.98
39
$17.76
49
$17.54
74
$17.33
99
$16.25
199
$16.03
249
$15.81
499
$15.60
999
$15.16
SKU:
NK15/12-MB
Major Brand NK15/12 Needle Roller Bearing With Flanges without Shaft Sleeve 15x23x12mm
- Regular price
- $21.66 ex VAT
- Sale price
- $21.66
- Regular price
-
Description
|
Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads. Benefits: Economical replacement, needles are retained within machined flange of the outer race. |

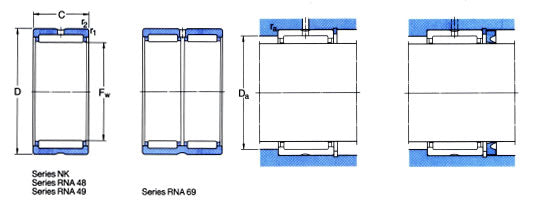

Technical
| Fw | = | 15mm |
| D | = | 23mm |
| C | = | 12mm |
| Dynamic load | = | 8600 N |
| Static load | = | 10070 N |
| Speed in oil | = | 21004 rpm |
| Weight | = | 18.5g |
