SKU: NK5/10T2-NTN

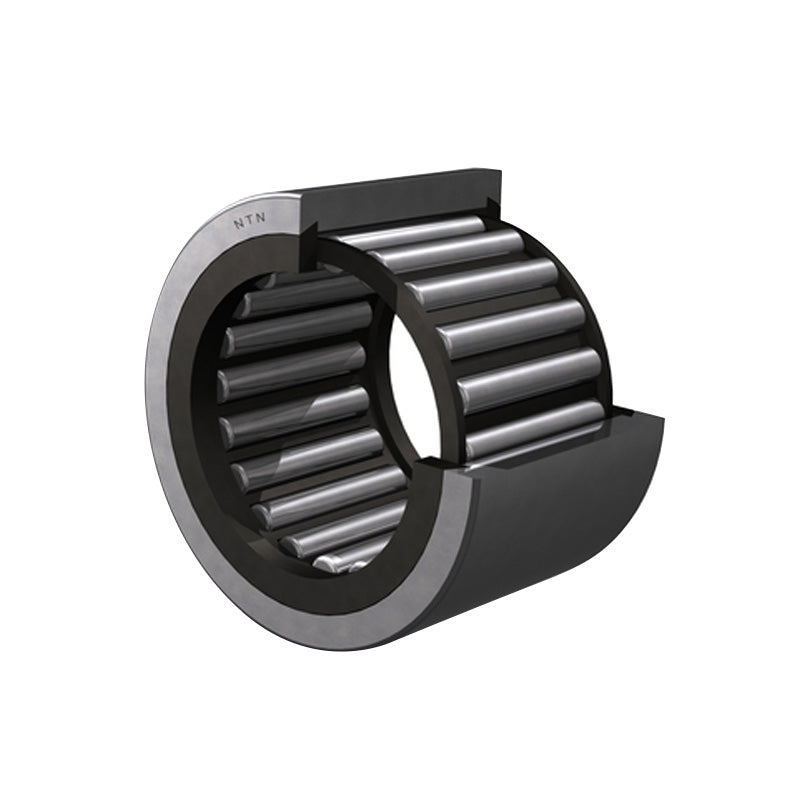

NTN NK5/10T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 5x10x10mm

Name: NTN NK5/10T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 5x10x10mm
Brand: NTN
SKU: NK5/10T2-NTN
Price: 10.75 USD
Availability: InStock

$10.75 ex VAT

Sale Sold out

In stock

Price Break

3+ $7.20

4+ $6.80

9+ $6.71

19+ $6.63

49+ $6.55

99+ $6.47

499+ $6.07

999+ $5.99

1999+ $5.91

2999+ $5.82

4999+ $5.66

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: NTN - High Quality
Inside Diameter:: 5mm
Outside Diameter:: 10mm
Width:: 10mm

Technical

Fw - Under rollers diameter	5mm
D - Outside diameter	10mm
C - Width of bearing, drawn cup or outer ring	10mm
rs - Minimum fillet radius	0.15mm
Lubrication hole on outer ring?	Yes
k - Lubrication hole diameter	2mm
Radial clearance class	CN
Precision class	P0
Cr - Dynamic load rating	2.64 kN
C0r - Static load rating	2.19 kN
N - Grease lubrication limit speed	27000 tr/min
N - Oil lubrication limit speed	40000 tr/min
Tmin - Minimum operating temperature	-20 Deg C
Tmax - Maximum operating temperature	+120 Deg C
Da max - Outer ring maximum shoulder diameter	6.5mm
ras max - Maximum shaft & housing fillet radius	0.15mm
