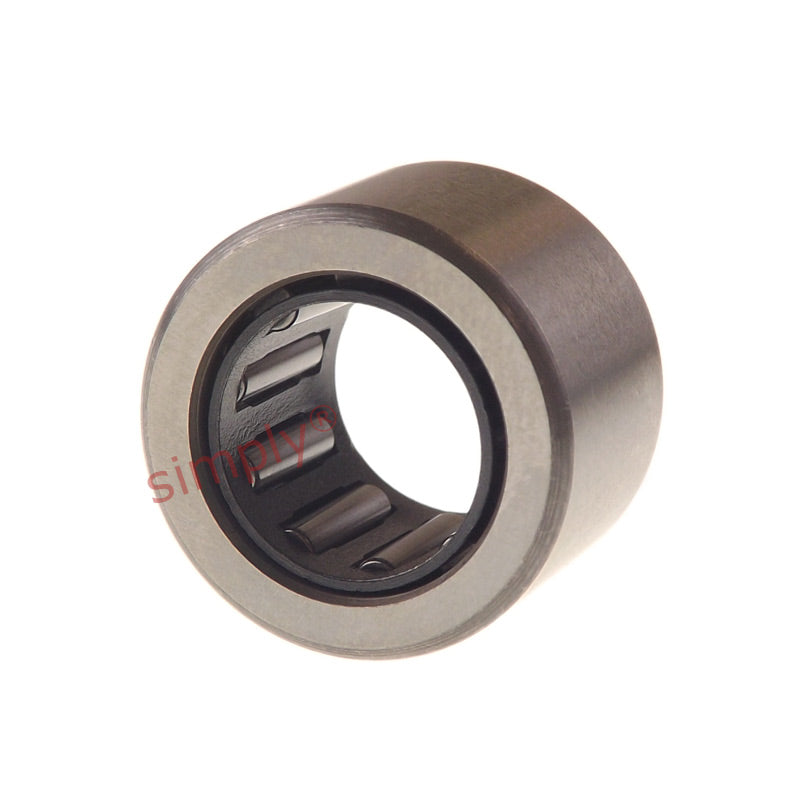

Major Brand NK6/10TN Needle Roller Bearing With Flanges without Shaft Sleeve 6x12x10mm

Name: Major Brand NK6/10TN Needle Roller Bearing With Flanges without Shaft Sleeve 6x12x10mm
Brand: Major Brand
SKU: NK6/10TN-MB
Price: 11.19 USD
Availability: InStock

$11.19 ex VAT

Sale Sold out

In stock

Price Break

10+ $7.49

19+ $7.07

29+ $6.99

39+ $6.90

49+ $6.82

74+ $6.73

99+ $6.31

199+ $6.23

249+ $6.15

499+ $6.06

999+ $5.89

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads.
Benefits: Economical replacement, needles are retained within machined flange of the outer race.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 6mm
Outside Diameter:: 12mm
Width:: 10mm

Technical

Fw	6mm
D	12mm
C	10mm
Dynamic load	2550 N
Static load	2360 N
Fatigue load limit Pu	250 N
Speed in grease	32000 rpm
Speed in oil	45000 rpm
r1r2	0.15mm
Da max	10.8mm
ra max	0.1mm
Seal	G6x12x2
Weight	4.7 g
