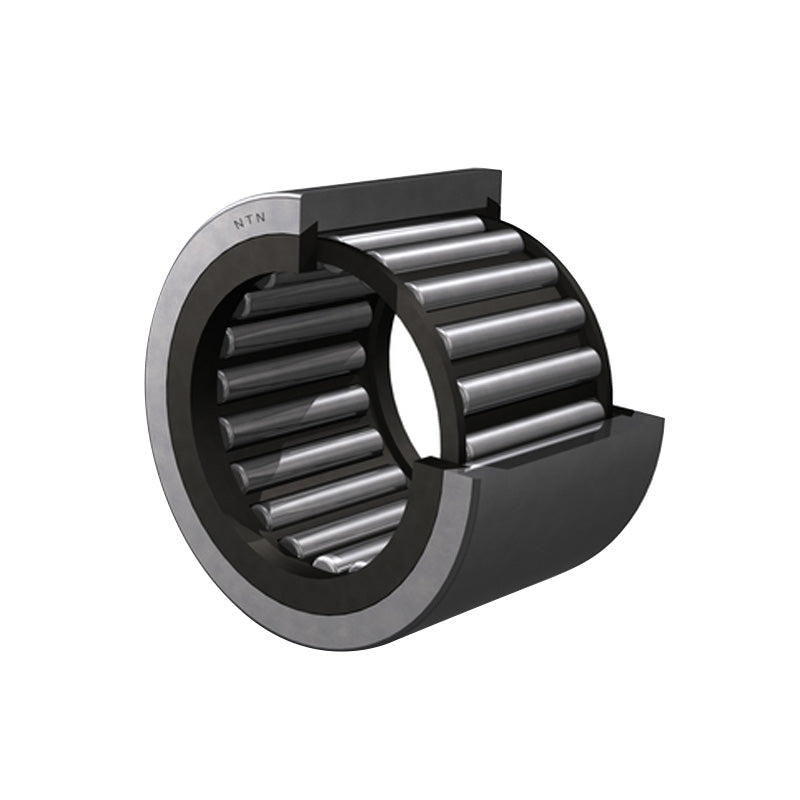

• NTN NK6/12T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 6x12x12mm
  • NTN
1 2

SKU: NK6/12T2-NTN

NTN NK6/12T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 6x12x12mm

NTN NK6/12T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 6x12x12mm
$10.98 ex VAT
$10.98 ex VAT
Sale Sold out

In stock

Price Break
3+ $7.35
4+ $6.94
9+ $6.86
19+ $6.77
49+ $6.69
99+ $6.61
499+ $6.20
999+ $6.11
1999+ $6.03
2999+ $5.95
4999+ $5.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NTN - High Quality
Inside Diameter:
6mm
Outside Diameter:
12mm
Width:
12mm
Technical
Fw - Under rollers diameter 6mm
D - Outside diameter 12mm
C - Width of bearing, drawn cup or outer ring 12mm
rs - Minimum fillet radius 0.15mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 3.4 kN
C0r - Static load rating 3.15 kN
N - Grease lubrication limit speed 25000 tr/min
N - Oil lubrication limit speed 37000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +100 Deg C
Da max - Outer ring maximum shoulder diameter 7.5mm
ras max - Maximum shaft & housing fillet radius 0.15mm
