SKU: NK7/12T2-NTN

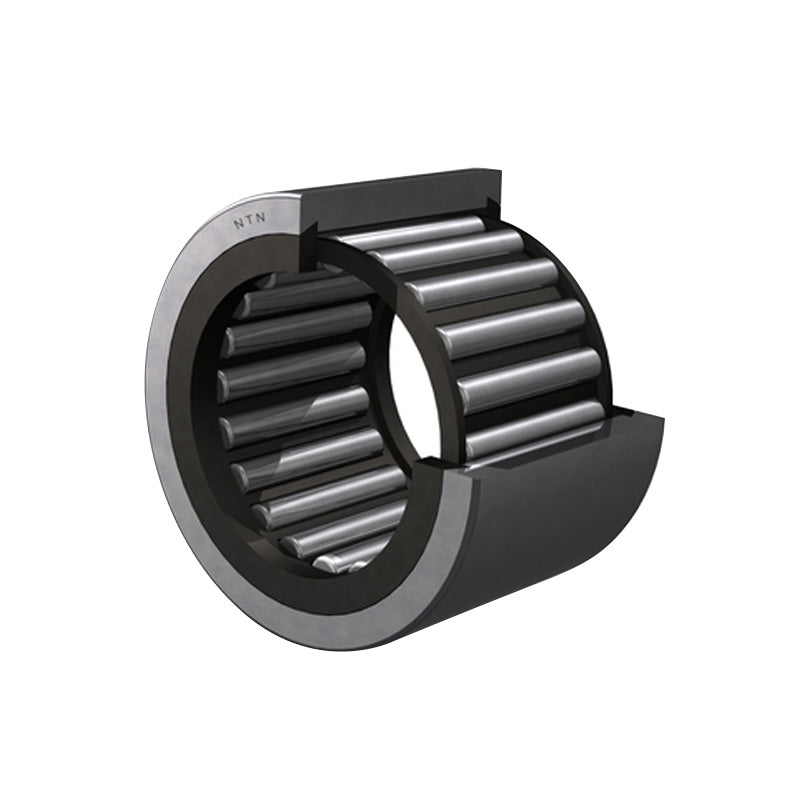

NTN NK7/12T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 7x14x12mm - Allow 2-3 Days

NTN NK7/12T2 Machined Needle Roller Bearing with Polyamide Cage no Shaft Sleeve 7x14x12mm - Allow 2-3 Days
Regular price $8.80 ex VAT
Regular price Sale price $8.80 ex VAT
Sale Sold out

In stock

Price Break
3+ $6.55
4+ $6.29
9+ $6.16
19+ $5.96
49+ $5.83
99+ $5.49
499+ $4.63
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
Fw - Under rollers diameter 7mm
D - Outside diameter 14mm
C - Width of bearing, drawn cup or outer ring 12mm
rs - Minimum fillet radius 0.3mm
Lubrication hole on outer ring? Yes
k - Lubrication hole diameter 2mm
Radial clearance class CN
Precision class P0
Cr - Dynamic load rating 3.4 kN
C0r - Static load rating 3.2 kN
N - Grease lubrication limit speed 23000 tr/min
N - Oil lubrication limit speed 34000 tr/min
Tmin - Minimum operating temperature -20 Deg C
Tmax - Maximum operating temperature +120 Deg C
Da max - Outer ring maximum shoulder diameter 8.5mm
ras max - Maximum shaft & housing fillet radius 0.3mm
