SKU: NK8/16TN-EU

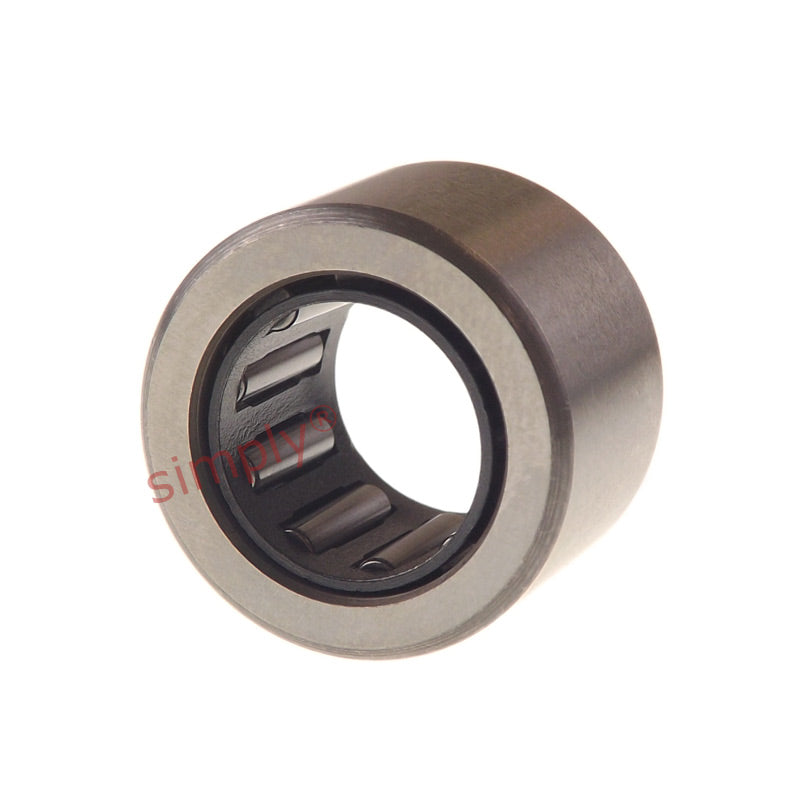

NK8/16TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 8x15x16mm

Name: NK8/16TN Budget Needle Roller Bearing with Flanges no Shaft Sleeve 8x15x16mm
Brand: Gen
SKU: NK8/16TN-EU
Price: 9.55 USD
Availability: InStock

$9.55 ex VAT

Sale Sold out

In stock

Price Break

10+ $6.40

19+ $6.04

29+ $5.96

39+ $5.89

49+ $5.82

74+ $5.75

99+ $5.39

199+ $5.32

249+ $5.25

499+ $5.17

999+ $5.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Budget Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads.
Benefits: Economical replacement, needles are retained within machined flange of the outer race.

Brand / Quality:: EU Budget - Economy Quality
Inside Diameter:: 8mm
Outside Diameter:: 15mm
Width:: 16mm

Technical

Fw	8mm
D	15mm
C	16mm
Dynamic load C	5010 N
Static load Co	5850 N
Fatigue load limit Pu	670 N
Speed in grease	28000 rpm
Speed in oil	40000 rpm
r1r2	0.3mm
Da max	13mm
ra max	0.3mm
Seal	G/SD8x15x3
Weight	12 g
