SKU: NK8/16TN-MB

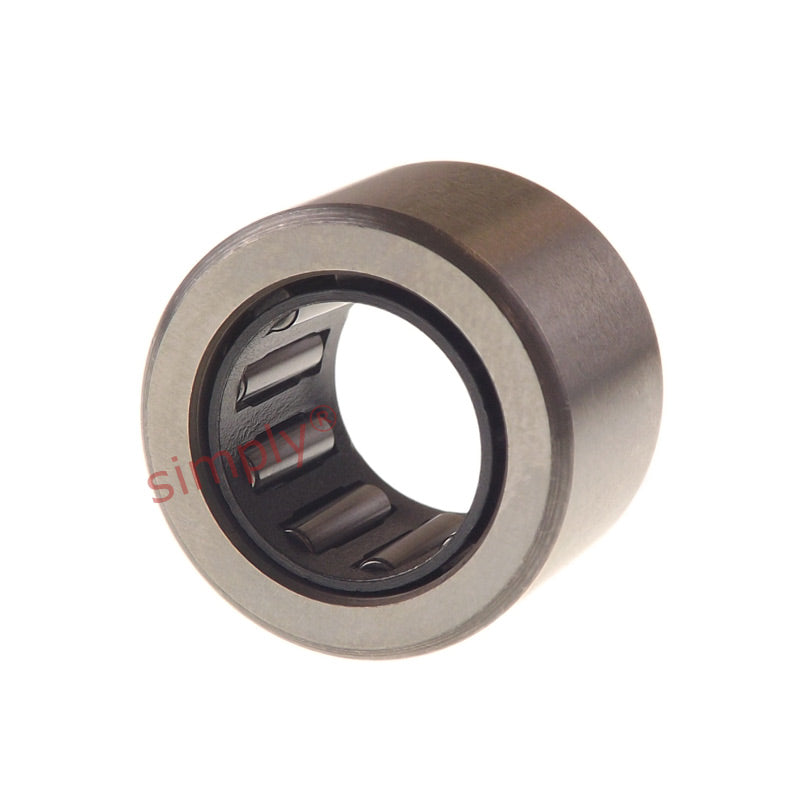

Major Brand NK8/16TN Needle Roller Bearing With Flanges without Shaft Sleeve 8x15x16mm

Name: Major Brand NK8/16TN Needle Roller Bearing With Flanges without Shaft Sleeve 8x15x16mm
Brand: Major Brand
SKU: NK8/16TN-MB
Price: 11.93 USD
Availability: InStock

$11.93 ex VAT

Sale Sold out

In stock

Price Break

10+ $7.99

19+ $7.55

29+ $7.46

39+ $7.37

49+ $7.28

74+ $7.19

99+ $6.74

199+ $6.65

249+ $6.56

499+ $6.47

999+ $6.29

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Machined Type Needle Roller with Flanges: Supplied without the inner ring for instances where a mating bearing surface already exists or an inner ring is to be used & has the benefit of flanges in the outer race to compensate for small misalignments and small side loads.
Benefits: Economical replacement, needles are retained within machined flange of the outer race.

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 8mm
Outside Diameter:: 15mm
Width:: 16mm

Technical

Fw	8mm
D	15mm
C	16mm
Dynamic load	5010 N
Static load	5850 N
Fatigue load limit Pu	670 N
Speed in grease	28000 rpm
Speed in oil	40000 rpm
r1r2	0.3mm
Da max	13mm
ra max	0.3mm
Seal	G/SD8x15x3
Weight	12 g
