SKU: NKI10/16-MB

Major Brand NKI10/16 Needle Roller Bearing With Shaft Sleeve 10x22x16mm

Name: Major Brand NKI10/16 Needle Roller Bearing With Shaft Sleeve 10x22x16mm
Brand: Major Brand
SKU: NKI10/16-MB
Price: 26.16 USD
Availability: InStock

$26.16 ex VAT

Sale Sold out

In stock

Price Break

10+ $17.52

19+ $16.54

29+ $16.34

39+ $16.14

49+ $15.95

74+ $15.75

99+ $14.77

199+ $14.57

249+ $14.37

499+ $14.17

999+ $13.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

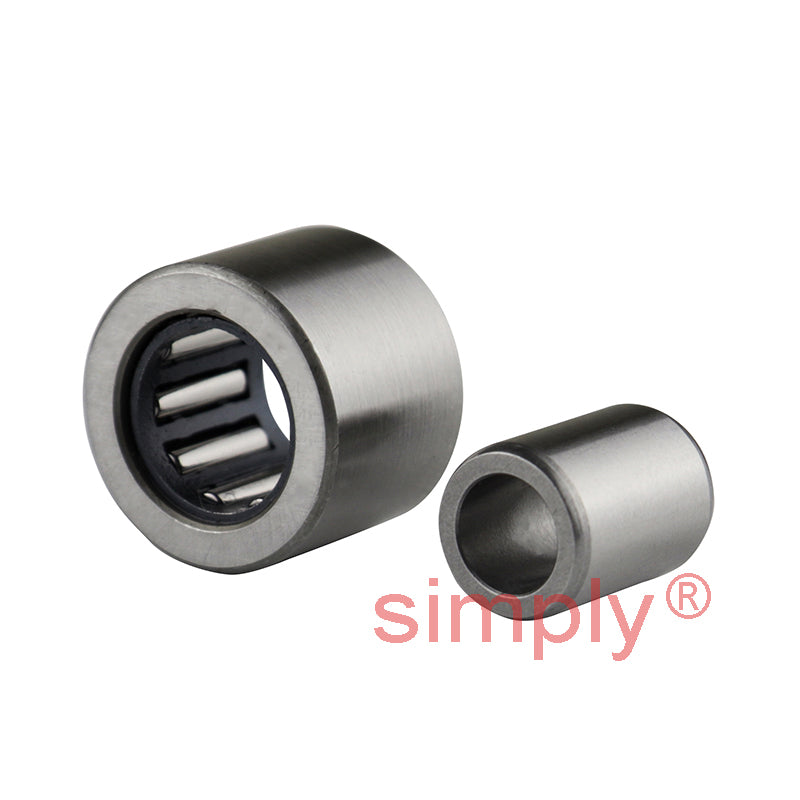

Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve.
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove

Brand / Quality:: Major Brand - High Quality
Inside Diameter:: 10mm
Outside Diameter:: 22mm
Width:: 16mm

Technical

d	10mm
D	22mm
B	16mm
Dynamic load	10200 N
Static load	12500 N
Fatigue load limit Pu	1530 N
Speed in grease	17000 rpm
Speed in oil	26000 rpm
F	14mm
r1r2	0.3mm
S (axial disp)	0.5mm
da min	12mm
Da max	20mm
ra max	0.3mm
