SKU: NKI35/20-EU

NKI35/20 Budget Needle Roller Bearing / Shaft Sleeve 35x50x20mm

NKI35/20 Budget Needle Roller Bearing / Shaft Sleeve 35x50x20mm
$30.23 ex VAT
$30.23 ex VAT
Sale Sold out

In stock

Price Break
10+ $20.25
19+ $19.11
29+ $18.88
39+ $18.66
49+ $18.43
74+ $18.20
99+ $17.06
199+ $16.84
249+ $16.61
499+ $16.38
999+ $15.93

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

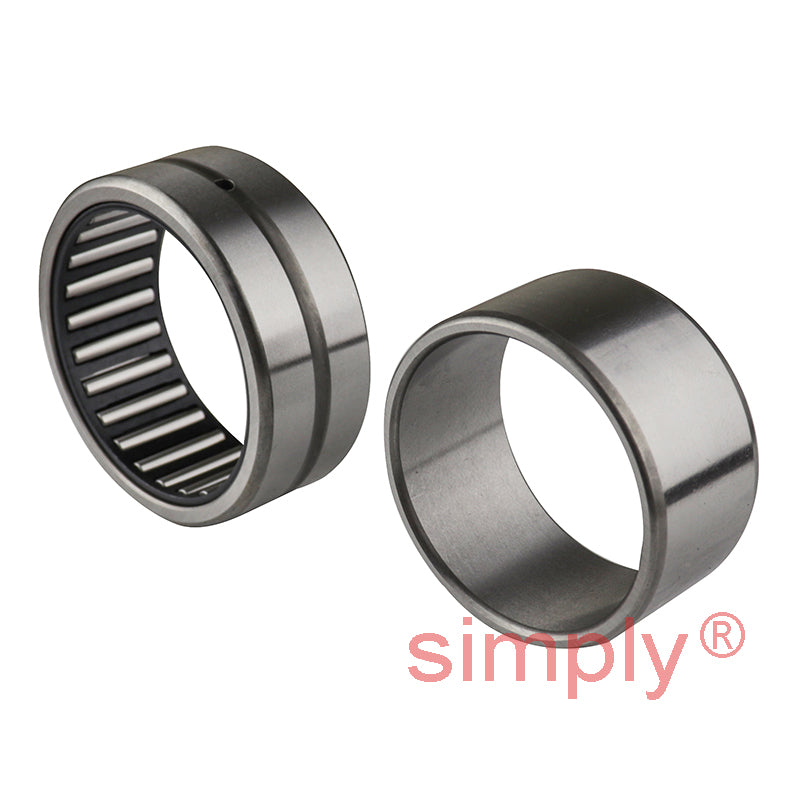

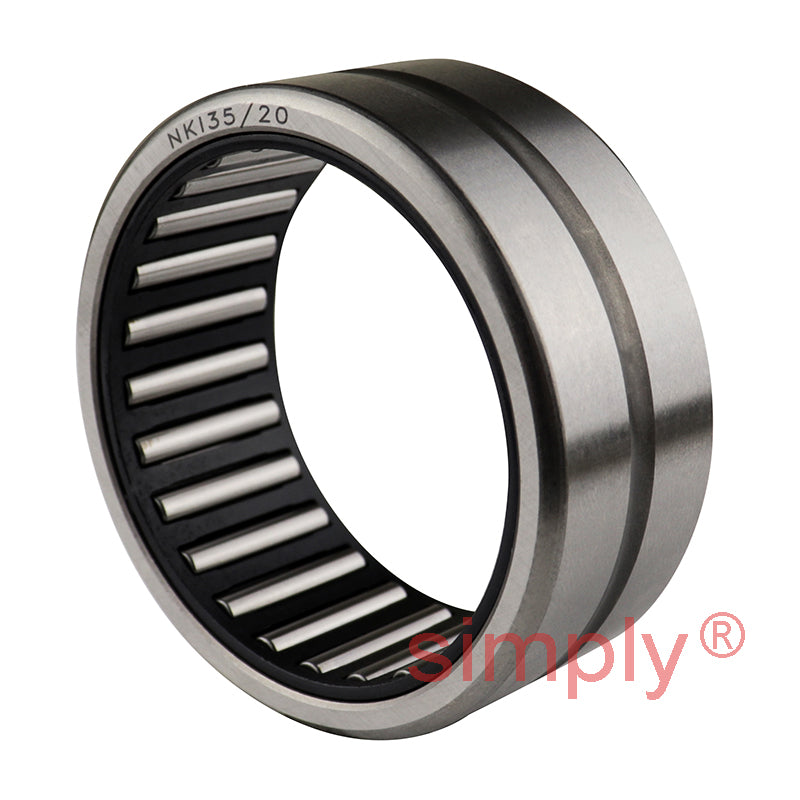

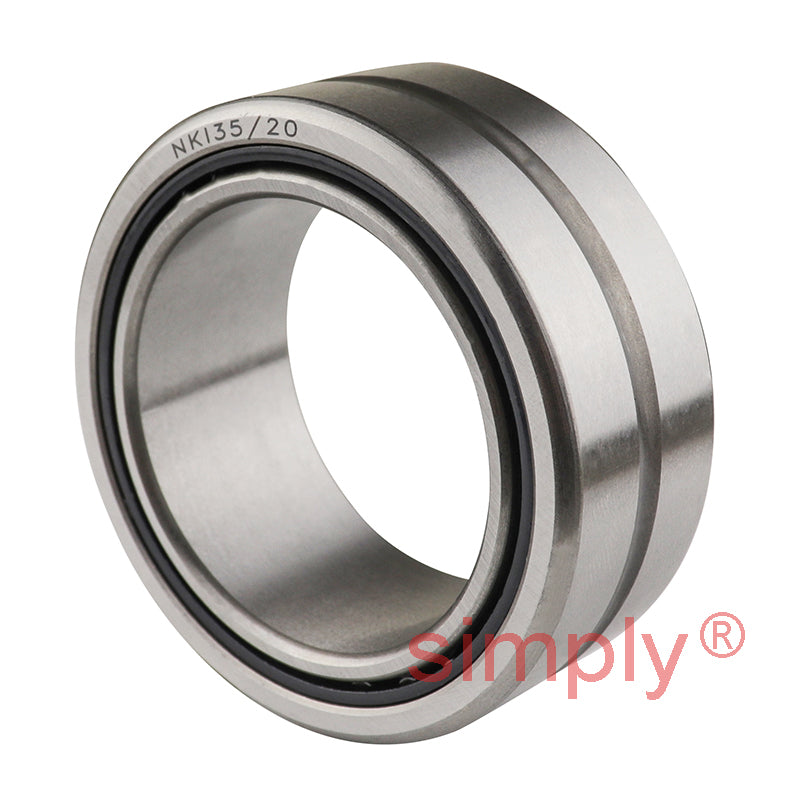

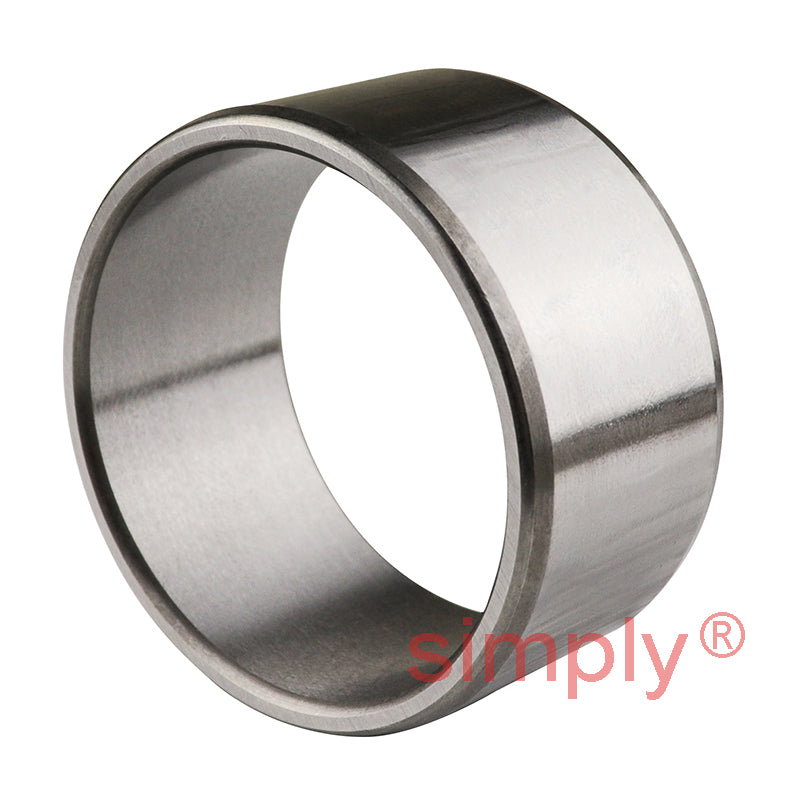

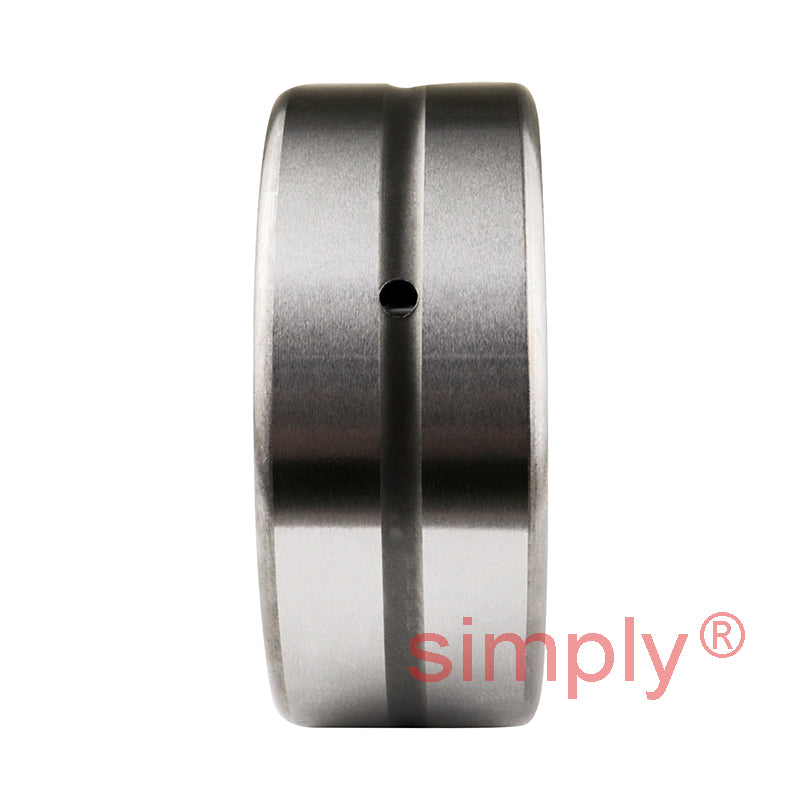

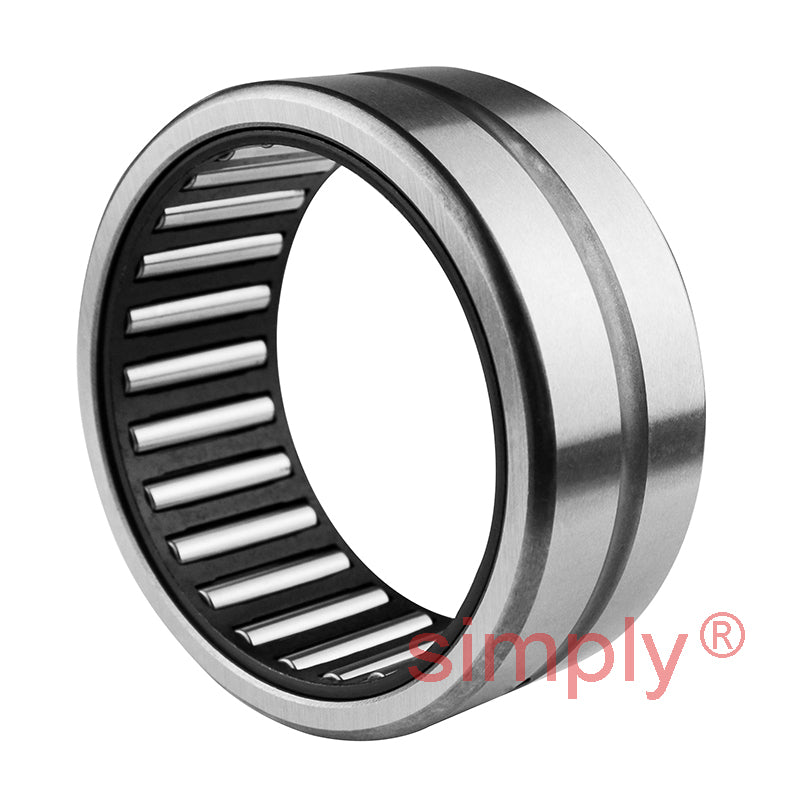

Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve.
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
35mm
Outside Diameter:
50mm
Width:
20mm
Technical
d 35mm
D 50mm
B 20mm
Dynamic load C 26400 N
Static load Co 51000 N
Fatigue load limit Pu 6400 N
Speed in grease 7000 rpm
Speed in oil 10000 rpm
F 40mm
r1r2 0.3mm
S (axial disp) 0.5mm
da min 37mm
Da max 48mm
ra max 0.3mm
