SKU: NKI6/12-EU

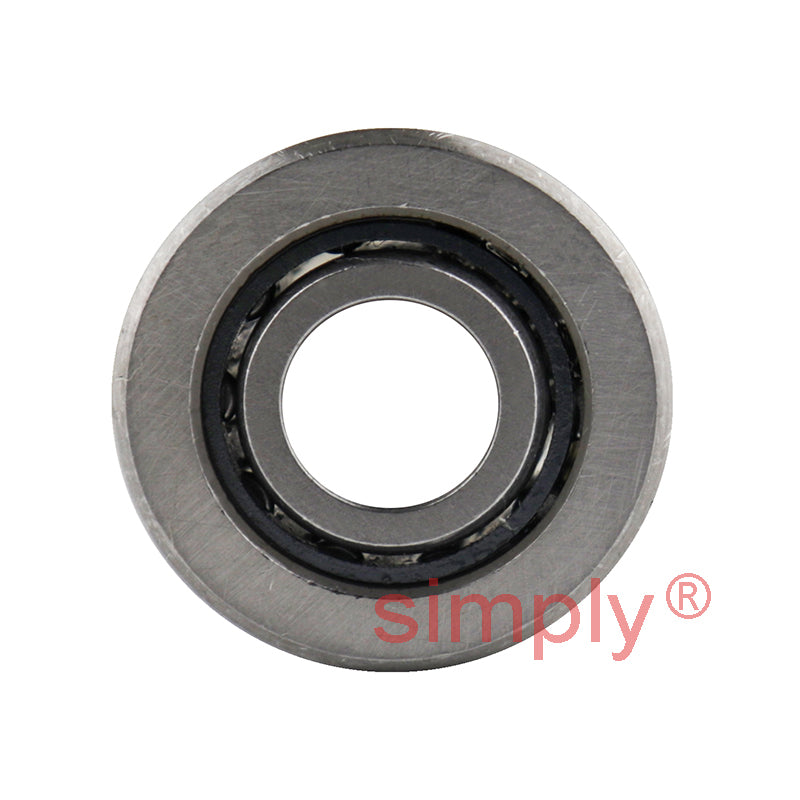

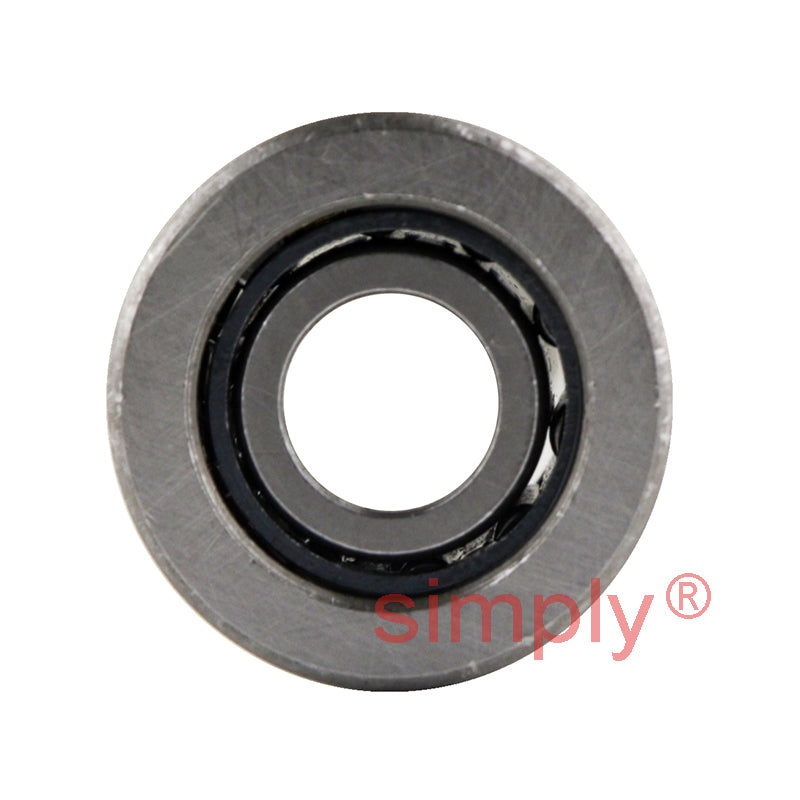

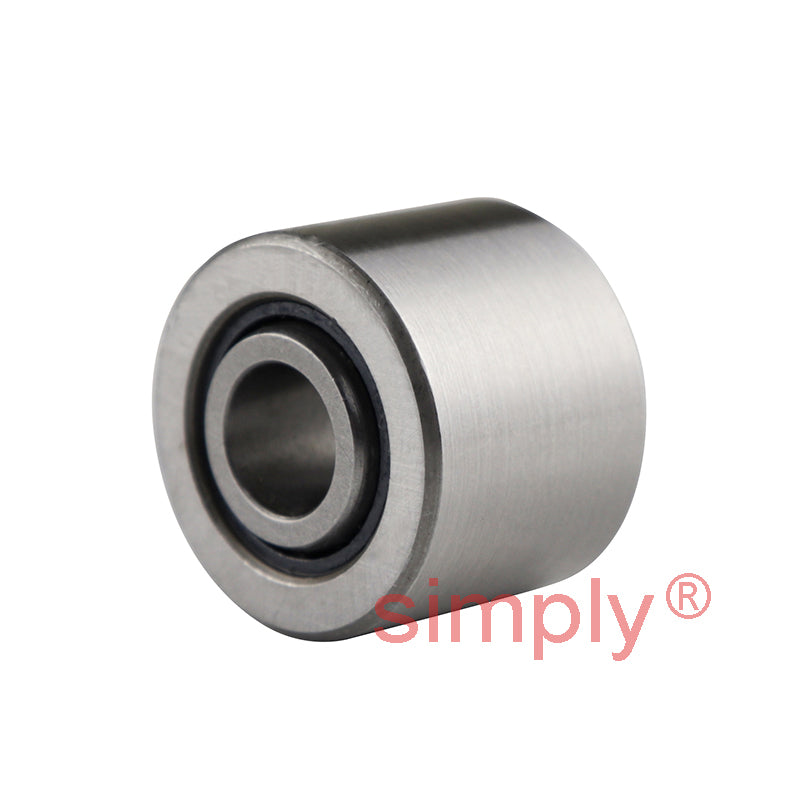

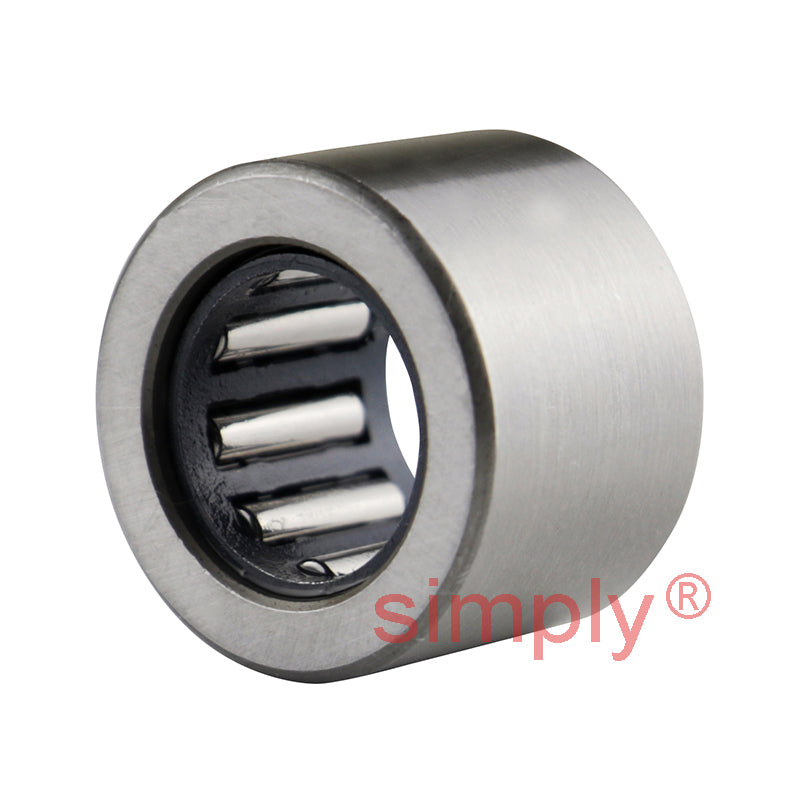

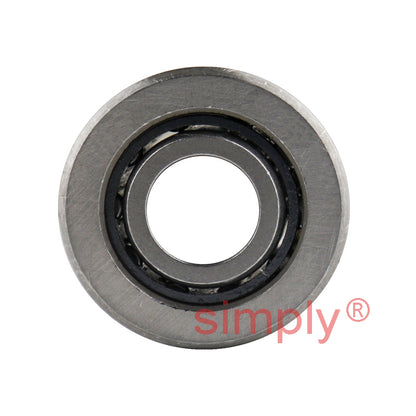

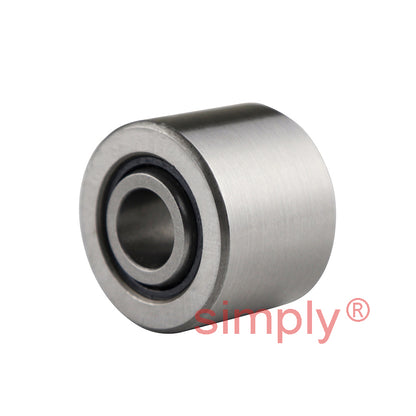

NKI6/12 Budget Needle Roller Bearing / Shaft Sleeve 6x16x12mm

NKI6/12 Budget Needle Roller Bearing / Shaft Sleeve 6x16x12mm
$12.60 ex VAT
$12.60 ex VAT
Sale Sold out

In stock

Price Break
10+ $8.44
19+ $7.96
29+ $7.87
39+ $7.77
49+ $7.68
74+ $7.58
99+ $7.11
199+ $7.01
249+ $6.92
499+ $6.82
999+ $6.63

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Budget Needle Roller Bearing and Shaft Sleeve: A machined needle roller bearing with retaining flanges in the outer ring to retain the rollers, comes supplied with a shaft sleeve.
Benefits: Ease of mounting, inner ring supplied, larger bearings have annular lubrication groove
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
6mm
Outside Diameter:
16mm
Width:
12mm
Technical
d 6mm
D 16mm
B 12mm
Dynamic load C 4400 N
Static load Co 5200 N
Fatigue load limit Pu 570 N
Speed in grease 24000 rpm
Speed in oil 36000 rpm
F 9mm
r1r2 0.3mm
S (axial disp) 1.5mm
da min 8mm
Da max 14mm
ra max 0.3mm
