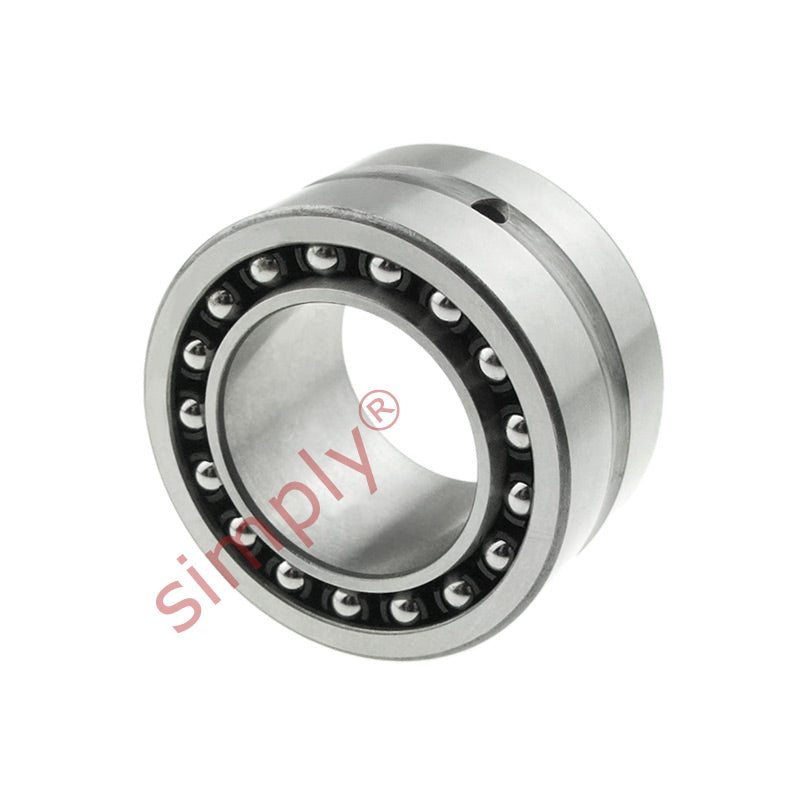

• Major Brand NKIA5903 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
1 1

SKU: NKIA5903-MB

Major Brand NKIA5903 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series

Major Brand NKIA5903 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
$41.00 ex VAT
$41.00 ex VAT
Sale Sold out

In stock

Price Break
10+ $27.46
19+ $25.92
29+ $25.61
39+ $25.30
49+ $24.99
74+ $24.68
99+ $23.14
199+ $22.83
249+ $22.52
499+ $22.22
999+ $21.60

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
17mm
Outside Diameter:
30mm
Width:
18mm
Technical
d 17mm
D 30mm
B 18mm
Radial dynamic load 11700 N
Radial static load 17000 N
Axial dynamic load 2240 N
Axial static load 2740 N
Fatigue load limit radial Pu 1960 N
Fatigue load limit axial Pu 116 N
Speed in grease 12000 rpm
Speed in oil 18000 rpm
F 22mm
r1r2 0.3mm
da min 19mm
Da max 28mm
ra max 0.3mm
