• Major Brand NKIA5905 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
1 1

SKU: NKIA5905-MB

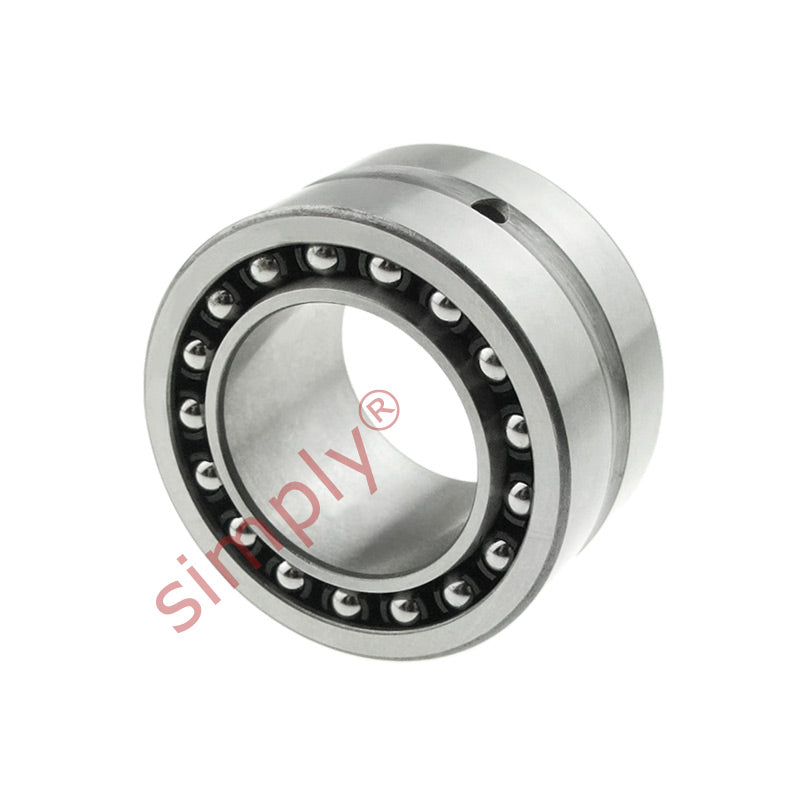

Major Brand NKIA5905 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series

Major Brand NKIA5905 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
$54.57 ex VAT
$54.57 ex VAT
Sale Sold out

In stock

Price Break
10+ $36.55
19+ $34.50
29+ $34.09
39+ $33.68
49+ $33.27
74+ $32.86
99+ $30.80
199+ $30.39
249+ $29.98
499+ $29.57
999+ $28.75

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
25mm
Outside Diameter:
42mm
Width:
23mm
Technical
d 25mm
D 42mm
B 23mm
Radial dynamic load 24200 N
Radial static load 34500 N
Axial dynamic load 4240 N
Axial static load 5260 N
Fatigue load limit radial Pu 4150 N
Fatigue load limit axial Pu 224 N
Speed in grease 8500 rpm
Speed in oil 13000 rpm
F 30mm
r1r2 0.3mm
da min 27mm
Da max 40mm
ra max 0.3mm
