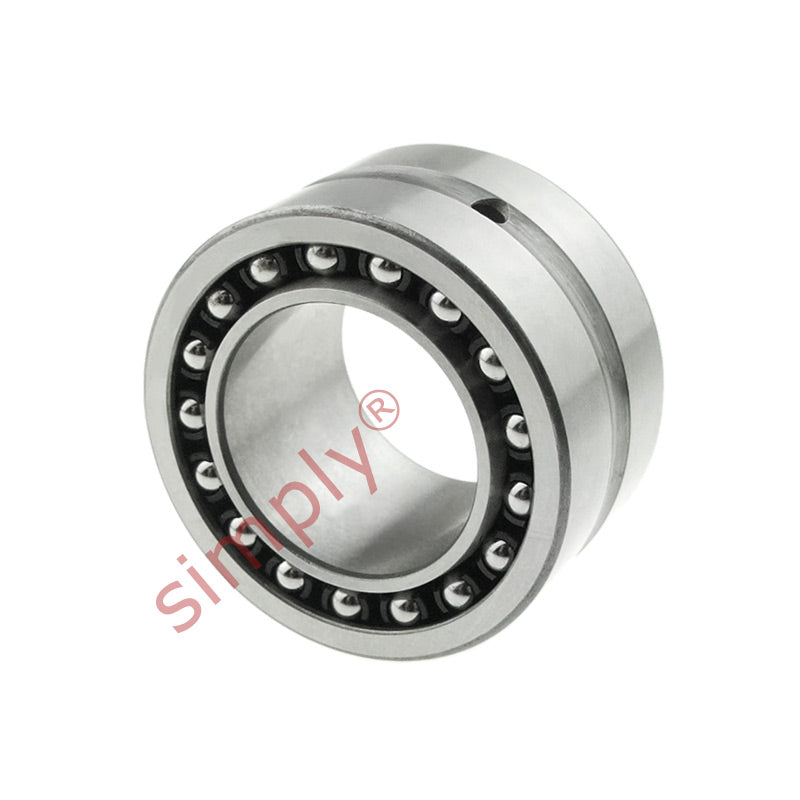

• NKIA5909 Budget Needle Roller / Angular Contact Ball Bearing 45x68x30mm
1 1

SKU: NKIA5909-EU

NKIA5909 Budget Needle Roller / Angular Contact Ball Bearing 45x68x30mm

NKIA5909 Budget Needle Roller / Angular Contact Ball Bearing 45x68x30mm
$89.46 ex VAT
$89.46 ex VAT
Sale Sold out

In stock

Price Break
10+ $59.92
19+ $56.55
29+ $55.88
39+ $55.21
49+ $54.53
74+ $53.86
99+ $50.49
199+ $49.82
249+ $49.15
499+ $48.47
999+ $47.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a single direction and are easily mountable as they are supplied with a separable inner ring. (Use NKIB type where dual direction thrust loads are required)
Benefits: Accommodates thrust and support loads, lubrication groove in outer ring, supplied separable inner race

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
45mm
Outside Diameter:
68mm
Width:
30mm
Technical
d 45mm
D 68mm
B 30mm
Radial dynamic load 45700 N
Radial static load 78000 N
Axial dynamic load 7470 N
Axial static load 12000 N
Fatigue load limit radial Pu 9650 N
Fatigue load limit axial Pu 513 N
Speed in grease 5300 rpm
Speed in oil 7500 rpm
F 52mm
r1r2 0.6mm
da min 49mm
Da max 64mm
ra max 0.6mm
Weight 380 g
