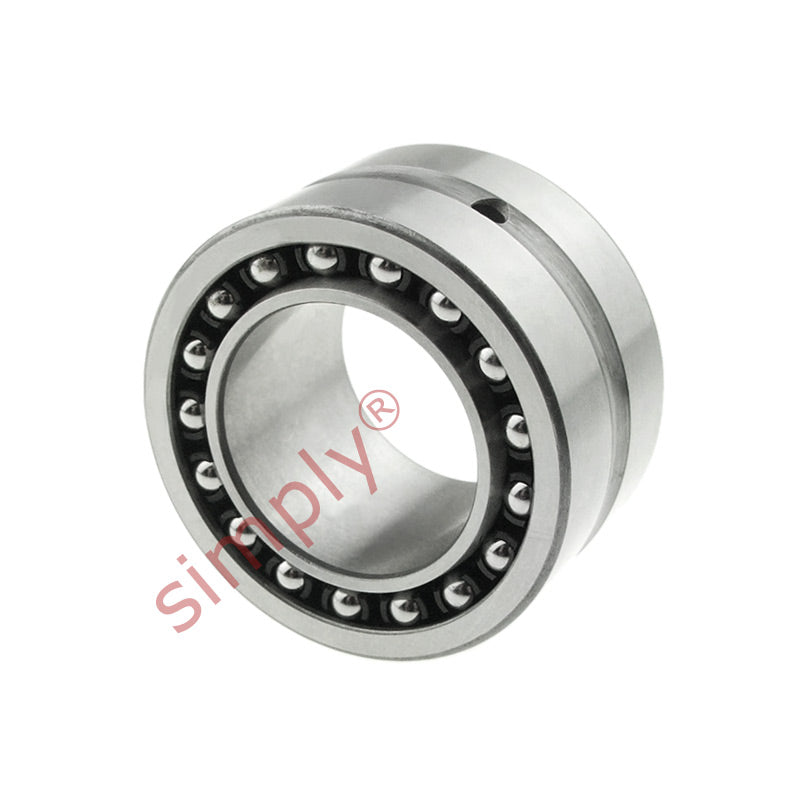

• Major Brand NKIA5911 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
1 1

SKU: NKIA5911-MB

Major Brand NKIA5911 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series

Major Brand NKIA5911 Needle Roller / Angular Contact Ball Bearing Assembly Single Direction Series
$253.30 ex VAT
$253.30 ex VAT
Sale Sold out

In stock

Price Break
10+ $169.67
19+ $160.14
29+ $158.23
39+ $156.32
49+ $154.42
74+ $152.51
99+ $142.98
199+ $141.07
249+ $139.17
499+ $137.26
999+ $133.45

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
55mm
Outside Diameter:
80mm
Width:
34mm
Technical
d 55mm
D 80mm
B 34mm
Radial dynamic load 57200 N
Radial static load 104000 N
Axial dynamic load 9270 N
Axial static load 16700 N
Fatigue load limit radial Pu 13200 N
Fatigue load limit axial Pu 697 N
Speed in grease 4500 rpm
Speed in oil 6300 rpm
F 63mm
r1r2 1mm
da min 60mm
Da max 75mm
ra max 1mm
