• NKIB59/22 Budget Needle Roller / Angular Contact Ball Bearing 22x39x25mm
1 1

SKU: NKIB59/22-EU

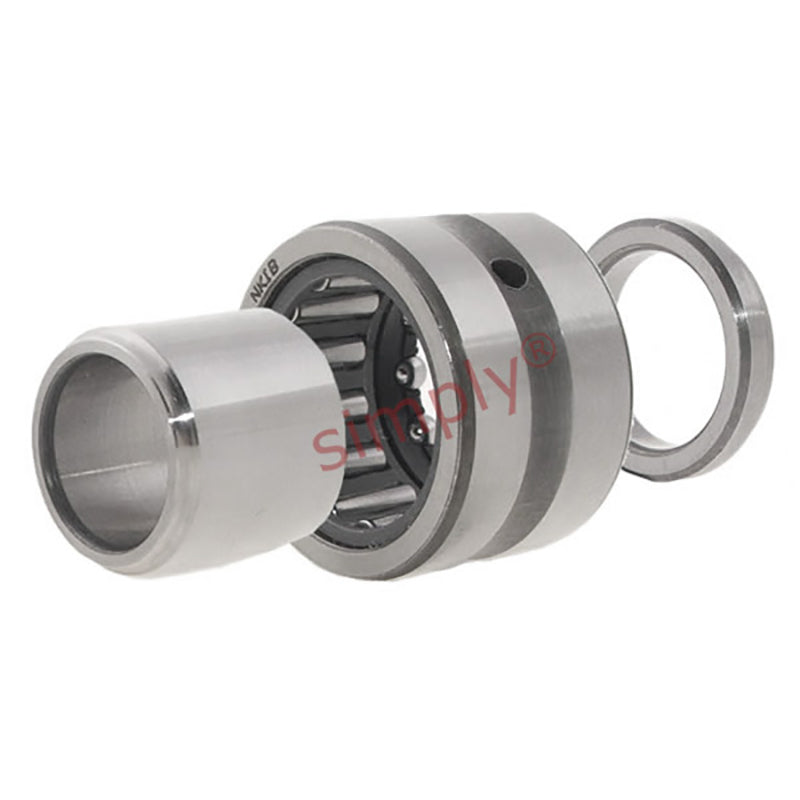

NKIB59/22 Budget Needle Roller / Angular Contact Ball Bearing 22x39x25mm

NKIB59/22 Budget Needle Roller / Angular Contact Ball Bearing 22x39x25mm
$50.33 ex VAT
$50.33 ex VAT
Sale Sold out

In stock

Price Break
10+ $33.71
19+ $31.82
29+ $31.44
39+ $31.06
49+ $30.68
74+ $30.31
99+ $28.41
199+ $28.03
249+ $27.65
499+ $27.27
999+ $26.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required)
Benefits: Accommodates thrust and support loads, lubrication groove in outer ring, supplied separable inner race

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
22mm
Outside Diameter:
39mm
Width:
25mm
Technical
d 22mm
D 39mm
B 25mm
C 23mm
Radial dynamic load 23300 N
Radial static load 32000 N
Axial dynamic load 4140 N
Axial static load 4930 N
Fatigue load limit radial Pu 3900 N
Fatigue load limit axial Pu 205 N
Speed in grease 9000 rpm
Speed in oil 14000 rpm
F 28mm
r1r2 0.3mm
da min 24mm
Da max 37mm
ra max 0.3mm
Weight 120 g
