• Major Brand NKIB59/22 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
1 1

SKU: NKIB59/22-MB

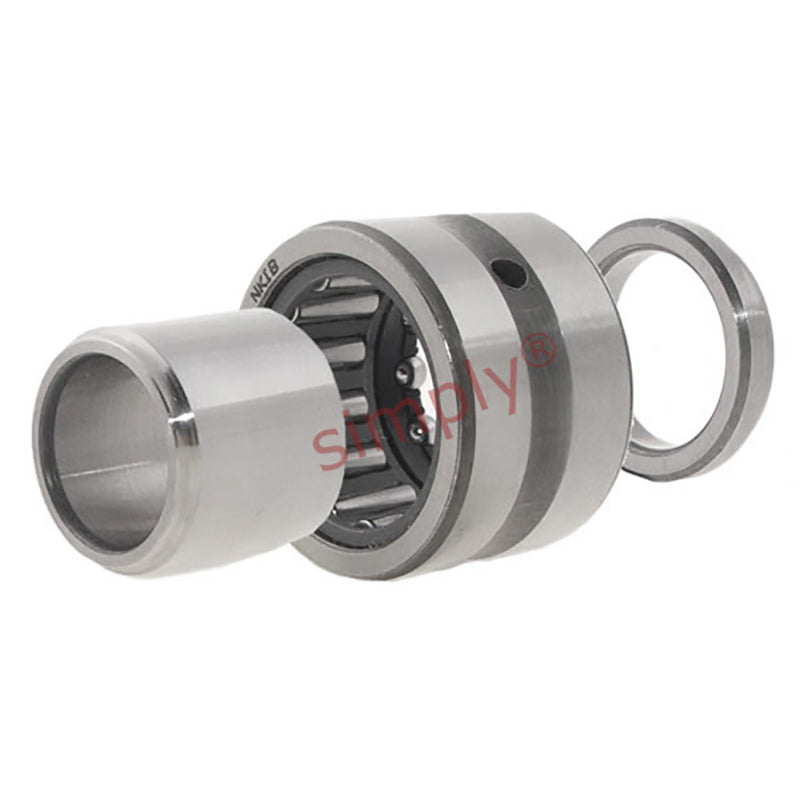

Major Brand NKIB59/22 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series

Major Brand NKIB59/22 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
$88.08 ex VAT
$88.08 ex VAT
Sale Sold out

In stock

Price Break
10+ $59.00
19+ $55.69
29+ $55.02
39+ $54.36
49+ $53.70
74+ $53.03
99+ $49.72
199+ $49.06
249+ $48.39
499+ $47.73
999+ $46.40

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
22mm
Outside Diameter:
39mm
Width:
25mm
Technical
d 22mm
D 39mm
B 25mm
C 23mm
Radial dynamic load 23300 N
Radial static load 32000 N
Axial dynamic load 4140 N
Axial static load 4930 N
Fatigue load limit radial Pu 3900 N
Fatigue load limit axial Pu 205 N
Speed in grease 9000 rpm
Speed in oil 14000 rpm
F 28mm
r1r2 0.3mm
da min 24mm
Da max 37mm
ra max 0.3mm
