• NKIB5902 Budget Needle Roller / Angular Contact Ball Bearing 15x28x20mm
1 1

SKU: NKIB5902-EU

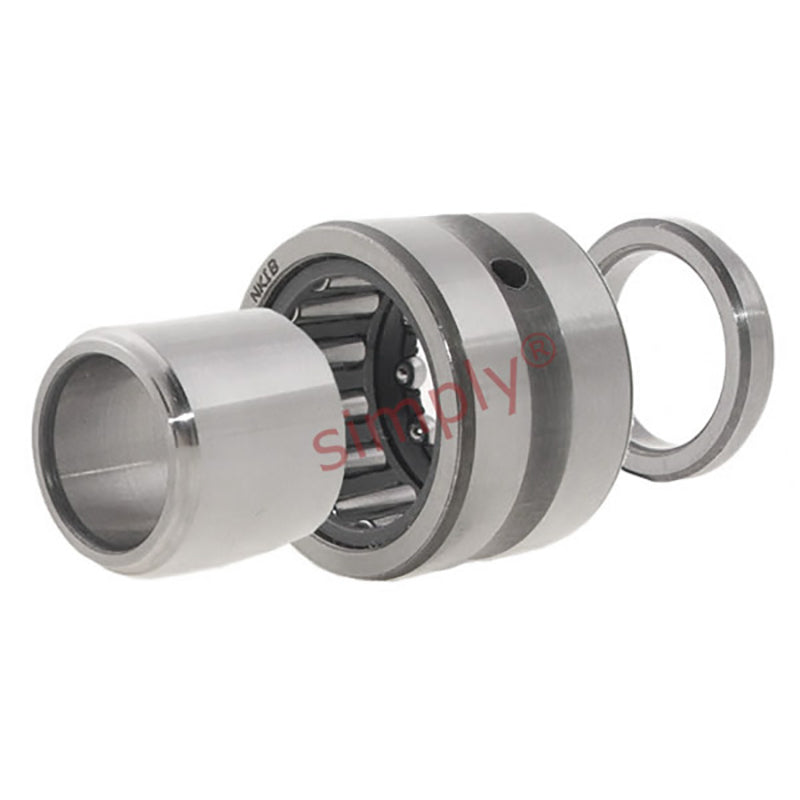

NKIB5902 Budget Needle Roller / Angular Contact Ball Bearing 15x28x20mm

NKIB5902 Budget Needle Roller / Angular Contact Ball Bearing 15x28x20mm
$32.11 ex VAT
$32.11 ex VAT
Sale Sold out

In stock

Price Break
10+ $21.51
19+ $20.30
29+ $20.06
39+ $19.82
49+ $19.58
74+ $19.34
99+ $18.13
199+ $17.89
249+ $17.64
499+ $17.40
999+ $16.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Budget Needle Roller / Angular Contact Combined: Accommodating thrust loads in a two directions and are easily mountable as they are supplied with a separable inner ring. (Use NKIA where single direction thrust loads are required)
Benefits: Accommodates thrust and support loads, lubrication groove in outer ring, supplied separable inner race

Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
15mm
Outside Diameter:
28mm
Width:
20mm
Technical
d 15mm
D 28mm
B 20mm
C 18mm
Radial dynamic load 11400 N
Radial static load 15600 N
Axial dynamic load 2270 N
Axial static load 2370 N
Fatigue load limit radial Pu 1830 N
Fatigue load limit axial Pu 99 N
Speed in grease 13000 rpm
Speed in oil 19000 rpm
F 20mm
r1r2 0.3mm
da min 17mm
Da max 26mm
ra max 0.3mm
Weight 52 g
