• Major Brand NKIB5902 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
1 1

SKU: NKIB5902-MB

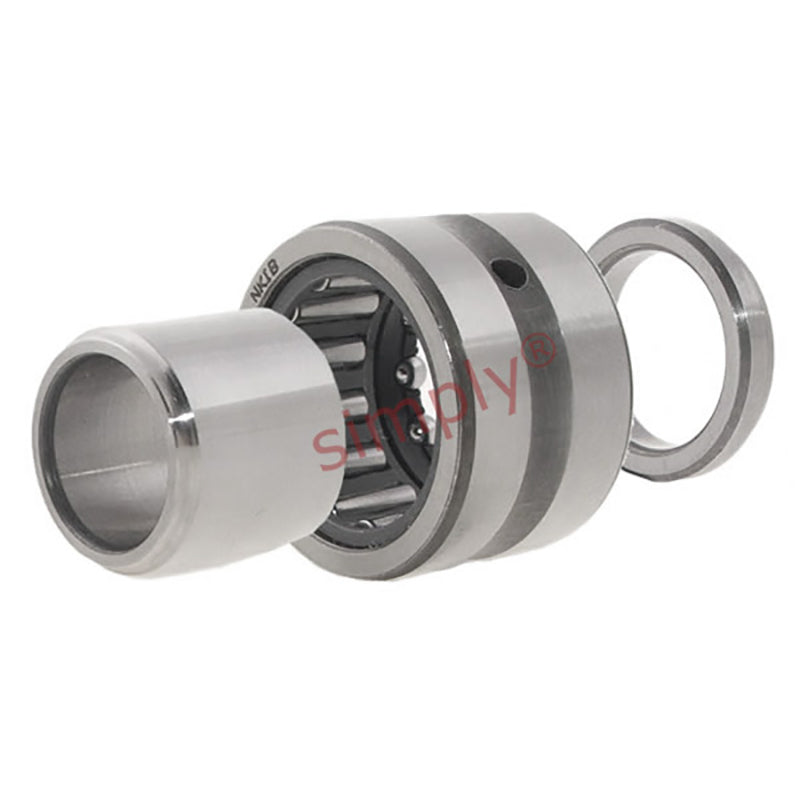

Major Brand NKIB5902 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series

Major Brand NKIB5902 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
$47.22 ex VAT
$47.22 ex VAT
Sale Sold out

In stock

Price Break
10+ $31.63
19+ $29.86
29+ $29.50
39+ $29.15
49+ $28.79
74+ $28.44
99+ $26.66
199+ $26.30
249+ $25.95
499+ $25.59
999+ $24.88

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
15mm
Outside Diameter:
28mm
Width:
20mm
Technical
d 15mm
D 28mm
B 20mm
C 18mm
Radial dynamic load 11400 N
Radial static load 15600 N
Axial dynamic load 2270 N
Axial static load 2370 N
Fatigue load limit radial Pu 1830 N
Fatigue load limit axial Pu 99 N
Speed in grease 13000 rpm
Speed in oil 19000 rpm
F 20mm
r1r2 0.3mm
da min 17mm
Da max 26mm
ra max 0.3mm
Reviews
View full details
