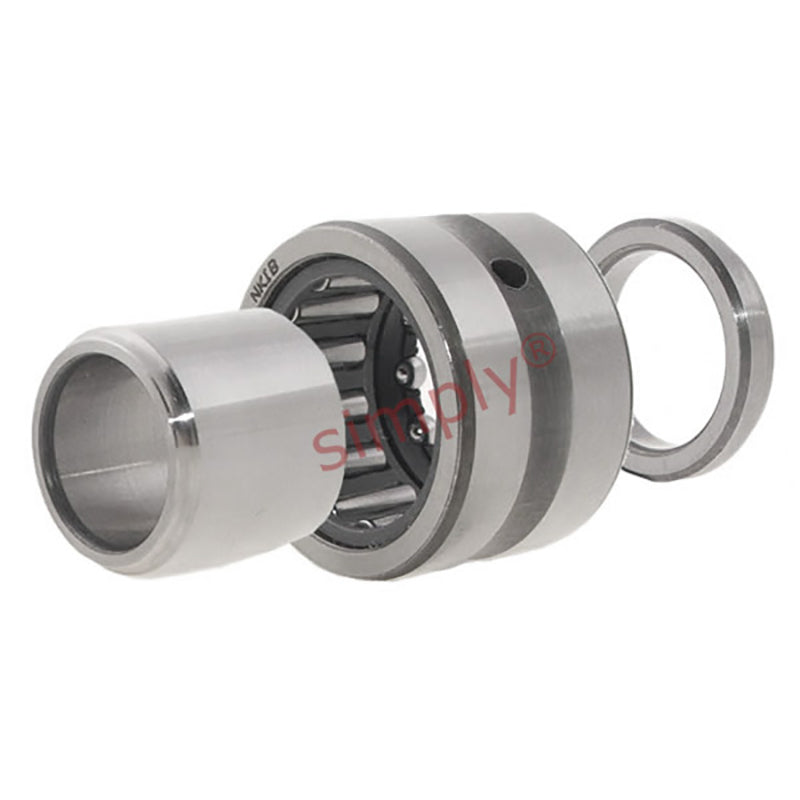

• Major Brand NKIB5905 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
1 1

SKU: NKIB5905-MB

Major Brand NKIB5905 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series

Major Brand NKIB5905 Needle Roller / Angular Contact Ball Bearing Assembly Double Direction Series
$67.31 ex VAT
$67.31 ex VAT
Sale Sold out

In stock

Price Break
10+ $45.09
19+ $42.55
29+ $42.05
39+ $41.54
49+ $41.03
74+ $40.53
99+ $37.99
199+ $37.49
249+ $36.98
499+ $36.47
999+ $35.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Major Brand - High Quality
Inside Diameter:
25mm
Outside Diameter:
42mm
Width:
25mm
Technical
d 25mm
D 42mm
B 25mm
C 23mm
Radial dynamic load 24200 N
Radial static load 34500 N
Axial dynamic load 4240 N
Axial static load 5260 N
Fatigue load limit radial Pu 4150 N
Fatigue load limit axial Pu 224 N
Speed in grease 8500 rpm
Speed in oil 13000 rpm
F 30mm
r1r2 0.3mm
da min 27mm
Da max 40mm
ra max 0.3mm
